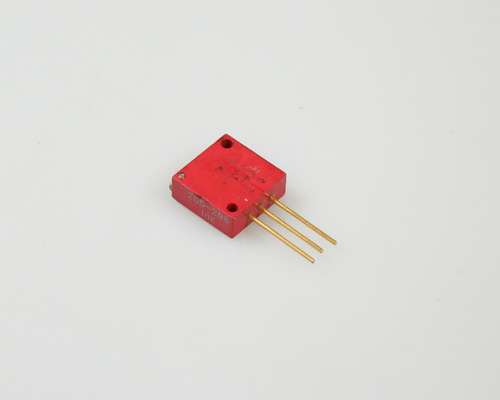

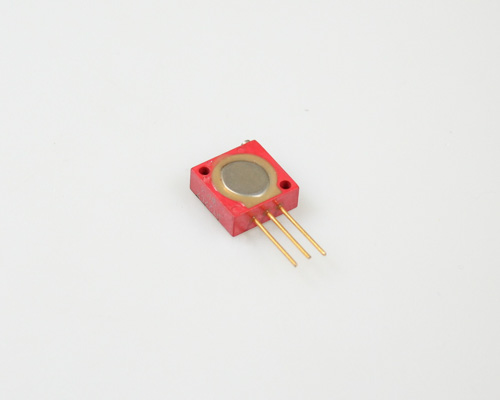

RT22C2W103 IRC potentiometer 10 kOhm, 0.75W trimpot
Hurry Up! Last one left in stock!
click picture to enlarge
Part Number:
RT22C2W103
Manufacturer:IRC
Item ID: 2022010832IRC RT22C2W103 spec
- maximum resistance: 10000.00 ohm
- resistance tolerance: 5%
- number of turns: 25
- power rating: 0.750 w
- voltage rating: 500.000 v
- taper: linear
- terminal type: pcb
- package: bulk
- item per pack: 1
- Width: 0.20 IN, Height: 0.54 IN, Length: 0.52 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
IRC RT22C2W103 is a multiturn wirewound square potentiometer / trimmer. Sealed, small 1/2 inch size. 25 turns adjustment. 10 kOhm 0.5W. Tolerance 5%. Temp Coefficient 50 ppm/ °C Temperature Range -65 °C to +150 °C. Solderable trough hole leads. Red color
MIL-PRF-27208 spec.
IRC RT22C2W103 Equal Part Numbers
RJ-31-103
