Understanding Electronic and Electric Relays: A Comprehensive Guide

Electronic and electric relays are fundamental components in electrical and electronic systems. They serve as essential switching devices, enabling one circuit to control another.

A relay is an electrically operated switch. It uses an electromagnet or solid-state device to mechanically or electronically open and close circuits. Relays allow low-power control signals to regulate high-power loads, making them indispensable in systems where isolation, automation, and control are crucial.

Relays are used in a variety of applications across numerous industries, such as:

• Automotive: For controlling headlights, wipers, and starter motors.
• Industrial Automation: To regulate machinery, conveyor belts, and robotics.
• Power Systems: In circuit protection, load shedding, and fault detection.
• Home Automation: For controlling lighting, HVAC systems, and appliances.
• Telecommunications: In signal routing and switching.
• Hobby Projects and Prototyping: For DIY projects involving motors, LEDs, and other components.

At the core of a relay is a coil, which generates a magnetic field when energized. This magnetic field either mechanically moves a set of contacts or triggers a solid-state switch. The contacts can switch circuits on or off, depending on the relay type.

Key Components of a Relay:

• Coil: Generates the magnetic field
• Contacts: Open or close to control the circuit.
• Armature (for electromechanical relays): Moves the contacts.
• Spring: Ensures contacts return to their default state.
• Housing: Protects internal components.

Relays come in many forms, each suited to specific applications:

Electromechanical Relays (EMRs)

• This type of relay consists of a coil, an armature mechanism and electrical contacts. When the coil is energized, the induced magnetic field moves the armature that opens or closes the contacts.
• Available in both latching and non-latching styles. Non-latching relays require continuous current flow through the coil to keep the relay actuated. Latching relays use permanent magnets to hold the armature in its current position, even after the drive current is removed from the coil.
• Widely used for switching high currents and voltages.
• Commonly found in industrial automation and automotive systems.

Solid-State Relays (SSRs)

• No moving parts. This style of relay is constructed using a photo-sensitive mosfet device with a led to accurate the device.
• Faster and more reliable than electromechanical relays because their switching time is dependent on the time required to power the led on and off (normally between .1ms and .05ms).
• Ideal for sensitive or high-speed applications.
• Because there are no mechanical parts it has a longer life expectancy than an electromechanical relay.

Reed Relays

• These relays have few moving parts. They are smaller and faster than other electromechanical relays.
• There are two types of reed relays, wet and dry. Dry reed relays have separate power supplies for the coil and the contacts. Wet reed relays have the same power supply for the coil and the contacts. Dry reed relays offer a faster switching speed than the wet version.
• Reed relays have only one contact and it is normally open (NO) and hermetically sealed in a glass.
• Often used in telecommunications and medical devices.

Time-Delay Relays

• Include a built-in timer for delayed activation.
• Used in lighting systems and motor start/stop circuits.

Overload Protection Relays

• Designed to protect motors and circuits from excessive current.
• Common in power systems and industrial equipment.

Latching Relays

• Maintain their position after being activated, even without power.
• Useful in energy-saving applications and memory circuits.

Electromechanical relays, despite their size and slower switching speeds provide a good option as the relay of choice for many applications. Reed relays offer an advantage over many other electromechanical styles because of their size however they are less robust when surge currents appear. SSR’s are faster than the other types but have higher part resistances and are not fully isolated between contacts.

When selecting or designing with relays, consider the following:

• Nominal Coil Voltage (Rated Coil Voltage): A single value (or narrow range) of source voltage intended by design to be applied to the coil. Ensure compatibility with the control circuit.
• Pick-up Voltage (Pull-in Voltage or Must operate Voltage): As the voltage on an unoperated relay is increased, it is the value at or below which all contacts must function.
• Drop-out Voltage (Release or Must Release Voltage): As the voltage on an operated relay is decreased, it is the value at or above which all contacts must revert to their unoperated position.
• Maximum Continuous Voltage: The maximum voltage that can be applied continuously to the coil without causing damage.
• Nominal Operating Current: The Vale of current flow in the coil when nominal voltage is impressed on the coil.
• Nominal Operating Power: The value of power used by the coil at nominal voltage. For DC coils it is expressed in watts. For AC coils it is expressed as volt amperes.
• Coil Resistance: This is the DC resistance of the coil in DC type relays for temperature conditions listed in the spec sheet for the part.
• Contact Current and Voltage Ratings: Match with the load requirements.
• Switching Speed: Critical for high-frequency applications.
• Isolation: Determines the level of separation between control and output circuits.
• Form Factor: Choose based on available space and mounting requirements.
• Durability: For high-cycle or industrial applications, opt for long-lasting relays.

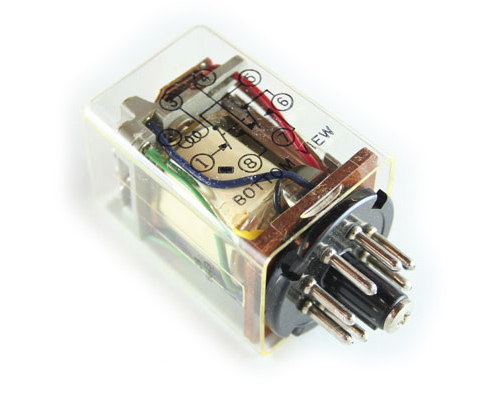

• Terminals: Relay terminals come in various types and configurations. The most common are plug-in terminals for relay sockets, solder-type terminals, and quick-connect terminals.

Contacts are the most important elements in relay construction. Contact performance is influenced by the material used in their construction, voltage and current values applied to the contacts, the type of load, frequency of switching, ambient atmosphere, form of contact, contact switching speed and bounce. We will provide you with some information to help you better understand some of these influences.

• Contact Rating: Contact ratings are the standard values for guaranteed relay performance and generally indicates the current rating of the relay’s contacts. The rating may vary depending on the voltage applied and the types of electrical loads. Relays contacts are designated as normally open (NO) or normally closed (NC) depending on their state when no power is applied to the relay.
• Switching Voltage: The voltage which can safely be switched between contacts. AC and DC maximum voltage will differ in most cases.
• Operate Time (Accurate Time): It is the time it takes for the contacts of a relay to close or open after the appropriate voltage has been applied to the relay coil.
• Release Time: It is the time interval from the instant of coil-power cut-off until the completion of the last contact function, not including bounce time.
• Bounce Time: The time it takes for relay’s contact to bounce after being closed or opened. It is measured in milliseconds.
• Contact Bounce: It is the uncontrolled opening and closing of the contacts due to forces within the relay.
• Operating Temperature: Is the range that the relay will work effectively. Operating temperature is critical for relays because temperature significantly impacts the functionality of the relay coil. As temperature increases the coil resistance is affected, potentially causing the relay to malfunction or not operate properly.

Relays come in various configurations to meet specific needs:

• Normally Open (NO) Relay: Contacts are open when the relay is not energized.
• Normally Closed (NC) Relay: Contacts are closed when the relay is not energized.
• Single Pole Single Throw (SPST) Relay: A simple on/off switch.
• Double Pole Double Throw (DPDT) Relay: Allows two independent circuits to be controlled.

Relays provide crucial functionality, including:

• Electrical isolation between control and power circuits.
• Ability to switch high-power loads with low-power signals.
• Versatility in various configurations and applications.

For engineers, students, and hobbyists, understanding relays is fundamental to mastering circuit design and automation. Whether you're building a robot, designing a power system, or automating a process, relays are key components that make complex systems reliable and efficient.
