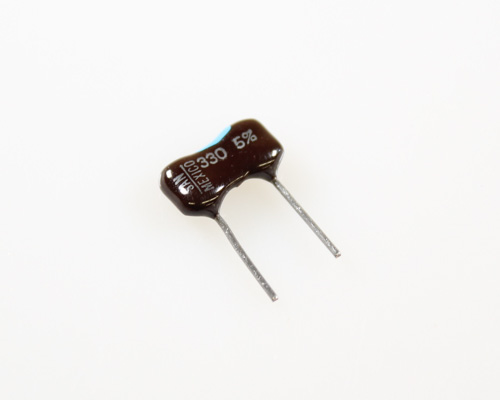

DM15FD331J03 SANGAMO capacitor 330pF 500V silver mica dipped
click picture to enlarge
Part Number:
DM15FD331J03
Manufacturer:SANGAMO
Item ID: 2020123771SANGAMO DM15FD331J03 spec
- capacitance: 330 pf
- voltage: 500 vdc
- non polar: yes
- tolerance: 5%
- temperature: -55c to +125c
- lead length: 9.14 mm (0.360 in)
- lead spacing: 5.84 mm (0.230 in)
- lead type: radial
- color: brown
- package: bulk
- item per pack: 1
- Width: 0.10 IN, Height: 0.23 IN, Length: 0.42 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
Sangamo DM15FD331J03 Dipped Silver Mica Capacitor.
DM15 Series. 0 to +70 ppm/C characteristic code "F". 500 Vdc Voltage rating "D". Capacitance 330 pF. 5% tolerance "J". -55C to +125C temperature range "0". MIL-STD-202 Method 204 Condition D at 10 Hz to 2 kHz vibration grade "3". Stable capacitance over a wide temperature range. Low dielectric absorption and repeatability. Excellent for timing, tuning, filtering, coupling, by-pass and close tolerance applications.
SANGAMO DM15FD331J03 data sheetSANGAMO DM15FD331J03 Equal Part Numbers
CD15FD331J03
