DM10CC150J03-FL SANGAMO capacitor 15pF 300V silver mica dipped

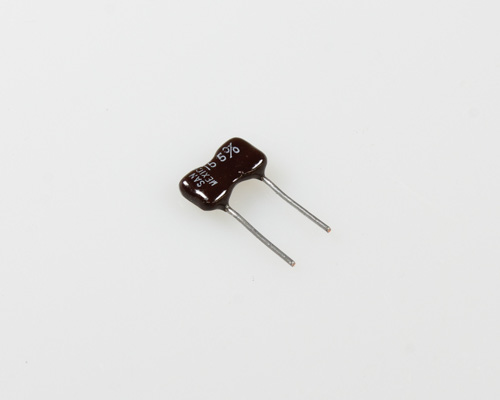

click picture to enlarge
DM10CC150J03-FL
Manufacturer:SANGAMO
Item ID: 2020124248SANGAMO DM10CC150J03-FL spec
- capacitance: 15 pf
- voltage: 300 vdc
- non polar: yes
- tolerance: 5%
- temperature: -55c to +125c
- lead length: 9.4 mm (0.370 in)
- lead spacing: 5.08 mm (0.200 in)
- lead type: formed
- lead style: radial
- color: brown
- package: bulk
- item per pack: 1
- Width: 0.09 IN, Height: 0.22 IN, Length: 0.41 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
Sangamo DM10CC150J03-FL Dipped Silver Mica Capacitor. Capacitance 15 pF. Voltage rating 300 VDC. Tolerance 5%. Temperature rating -55C to +125C. Radial terminals.
DM10 Series. -200 to +200 ppm/C characteristic code "C". 300 Vdc Voltage rating "C". Capacitance 15 pF. 5% tolerance "J". -55C to +125C temperature range "0". MIL-STD-202 Method 204 Condition D at 10 Hz to 2 kHz vibration grade "3". Stable capacitance over a wide temperature range. Low dielectric absorption and repeatability. Excellent for timing, tuning, filtering, coupling, by-pass and close tolerance applications.
SANGAMO DM10CC150J03-FL data sheetSANGAMO DM10CC150J03-FL Equal Part Numbers
CD10CC150J03
