3386Y-1-254 BOURNS potentiometer 250 kOhm, 0.5W Trimpot

Name: 3386Y-1-254
Brand: BOURNS
SKU: 2022007514
Availability: InStock

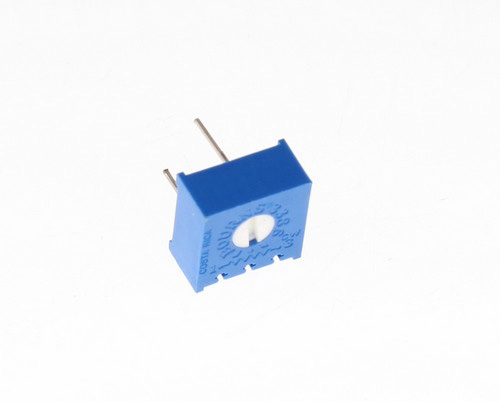

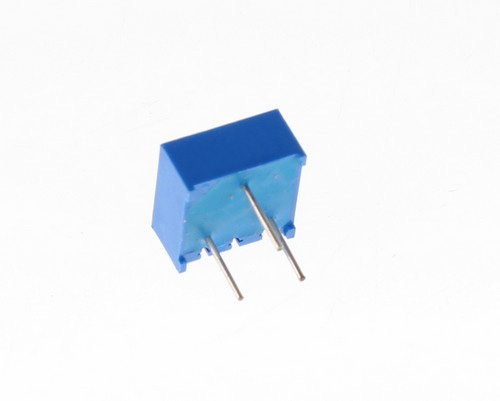

Picture of 3386Y-1-254 BOURNS potentiometer 250 kOhm, 0.5W Trimpot — click picture to enlarge

Part Number:

3386Y-1-254

Manufacturer:

BOURNS

Item ID: 2022007514

BOURNS 3386Y-1-254 spec

minimum resistance: 0.00 ohm
maximum resistance: 250000.00 ohm
resistance tolerance: 10%
number of turns: 1
power rating: 0.500 w
voltage rating: 300.000 v
taper: linear
terminal type: pcb
package: bulk
item per pack: 1
width: 0.375 IN, length: 0.375 IN, height: 0.190 IN

Item in stock
can ship right now

BOURNS 3386Y-1-254 pricing

As a result of our continually increasing inventory we have been unable to provide you with a price for this part at the time it was entered on the website. This part is in stock and we will price it as soon as we can, however if you need the price right away you can click button below and this part will be priced no later than 1 business day.
We thank you for your interest in this part and for visiting our website.

Should you need special / personal pricing, click here to contact us here via email.

Description

BOURNS 3386Y-1-254 is a single turn cermet square trimming potentiometer. 3386Y series trimpot. Sealed, small 3/8 inch size. Horizontal mounting. 280° Adjustment angle. Absolute min resistance 1.0% or 2 ohms max.

Power rating of 3386Y-1-254 trimpot is 0.5W. Standard tolerance is 10%. Temperature Range -55 °C to +125 °C. Temperature Coefficient ±100 ppm/°C. 3386Y-1-254 is a top adjustable and has solderable through hole (pcb) terminals. 0.20 inch terminals spacing.

spec sheet icon BOURNS 3386Y-1-254 data sheet

BOURNS 3386Y-1-254 Equal Part Numbers

3386Y-001-254 RJ-146-254
