3329X-1-502 BOURNS potentiometer 5 kOhm, 0.5W Trimpot

Name: 3329X-1-502
Brand: BOURNS
SKU: 2022007600
Price: 2.6900 USD
Availability: InStock

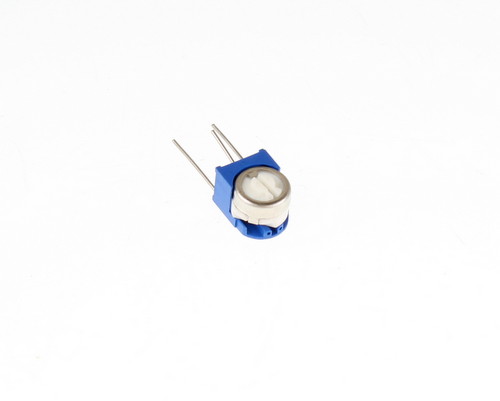

Picture of 3329X-1-502 BOURNS potentiometer 5 kOhm, 0.5W Trimpot — click picture to enlarge

Part Number:

3329X-1-502

Manufacturer:

BOURNS

Item ID: 2022007600

BOURNS 3329X-1-502 spec

minimum resistance: 0.00 ohm
maximum resistance: 5000.00 ohm
resistance tolerance: 10%
number of turns: 1
power rating: 0.500 w
voltage rating: 300.000 v
taper: linear
terminal type: pcb
package: bulk
item per pack: 1
width: 0.260 IN, length: 0.240 IN, height: 0.330 IN

Item in stock
can ship right now

(number in the box shows required min quantity)

BOURNS 3329X-1-502 pricing

Qty

100

100+

Unit Price

2.69

2.02

1.32

Price

21.52

50.50

132.00

Submit an RFQ

Did you see a better price somewhere else?
Request Price Match!

Description

BOURNS 3329X-1-502 is a single turn cermet round trimming potentiometer. 3329X series trimpot. Sealed, small 1/4 inch size. Vertical mounting. 240° adjustment angle. Absolute min resistance 1.0% or 2 ohms max.

Power rating of 3329X-1-502 trimpot is 0.5W. Standard tolerance is 10%. Temperature Range -55 °C to +150 °C. Temperature Coefficient ±100 ppm/°C. 3329X-1-502 is a side adjustable and has solderable through hole (pcb) terminals. 0.10 inch terminals spacing.

spec sheet icon BOURNS 3329X-1-502 data sheet

BOURNS 3329X-1-502 Equal Part Numbers

3329X-001-502 RJ-103-502
