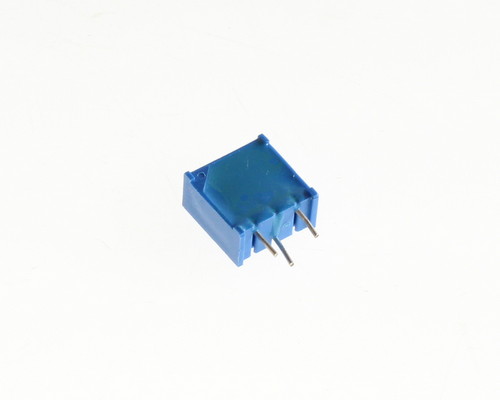

3386H-1-502 BOURNS potentiometer 5 kOhm, 0.5W Trimpot
click picture to enlarge
Part Number:
3386H-1-502
Manufacturer:BOURNS
Item ID: 2022007707BOURNS 3386H-1-502 spec
- maximum resistance: 5000.00 ohm
- resistance tolerance: 10%
- number of turns: 1
- power rating: 0.500 w
- voltage rating: 300.000 v
- taper: linear
- terminal type: pcb
- package: BULK
- item per pack: 1
- Width: 0.375 in, Height: 0.375 in, Length: 0.19 in
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
BOURNS 3386H-1-502 is a single turn cermet square trimming potentiometer. 3386H series trimpot. Sealed, small 3/8 inch size. Vertical mounting. 280° Adjustment angle. Absolute min resistance 1.0% or 2 ohms max.
Power rating of 3386H-1-502 trimpot is 0.5W. Standard tolerance is 10%. Temperature Range -55 °C to +125 °C. Temperature Coefficient ±100 ppm/°C. 3386H-1-502 is a side adjustable and has solderable through hole (pcb) terminals. 0.10 inch terminals spacing.
