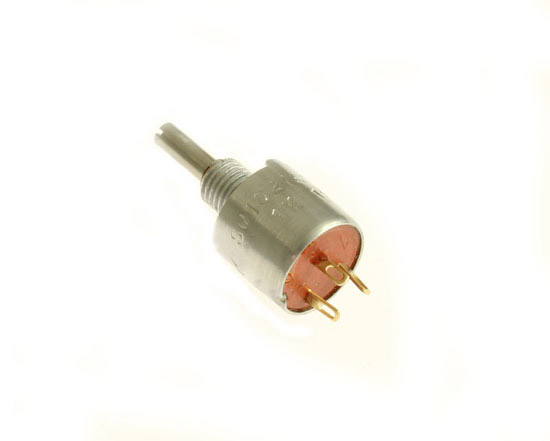

RV6NAYSA502A PEC potentiometer 5 kOhm, 0.5W RV6 RV6NAYSA Series
click picture to enlarge
Part Number:
RV6NAYSA502A
Manufacturer:PEC
Item ID: 2022007854PEC RV6NAYSA502A spec
- minimum resistance: 0.00 ohm
- maximum resistance: 5000.00 ohm
- resistance tolerance: 10%
- number of turns: 1
- power rating: 0.500 w
- voltage rating: 350.000 v
- taper: linear
- terminal type: solder lugs
- package: bulk
- item per pack: 1
- diameter: 0.50 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
P.E.C. RV6NAYSA502A RV6 style potentiometer. 5000 ohms 10% tolerance. Linear taper. 0.5 watt 350 volts rating.
RV6NAYSA502A is a 1 turn potentiometer with solder terminals. Standard bushing. 0.625 shaft length. Slotted shaft.
PEC RV6NAYSA502A data sheetPEC RV6NAYSA502A Equal Part Numbers
