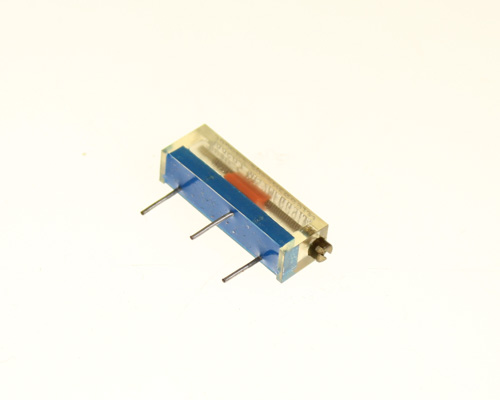

3006P-007-205 Bourns potentiometer 2 MOhm, 0.75W Trimpot
click picture to enlarge
Part Number:
3006P-007-205
Manufacturer:Bourns
Item ID: 2022008948Bourns 3006P-007-205 spec
- minimum resistance: 0.00 ohm
- maximum resistance: 2000000.00 ohm
- resistance tolerance: 10%
- number of turns: 15
- power rating: 0.750 w
- voltage rating: 400.000 v
- taper: linear
- terminal type: pcb
- package: tube
- item per pack: 1
- Width: 0.19 IN, Height: 0.25 IN, Length: 0.75 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
BOURNS 3006P-007-205 is a multiturn cermet rectangular potentiometer. 3006P series trimpot. Has sealed small size: 1/4 inch high, 3/4 inch long. 15 turns adjustment. Power rating of 3006P-007-200 is 0.75W. Absolute minimum resistance 1.0% or 2 ohms max.
Standard tolerance is 10%. Temperature Range -55 °C to +125 °C. Temperature Coefficient ±100 ppm/°C. 3006P-007-205 has solderable through hole (pcb) terminals.
