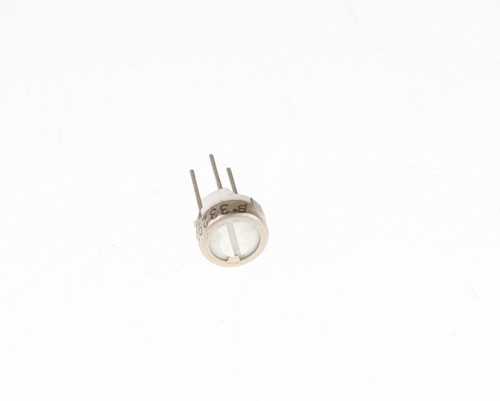

3329H-G48-204 BOURNS potentiometer 200 kOhm, 0.5W Trimpot
click picture to enlarge
Part Number:
3329H-G48-204
Manufacturer:BOURNS
Item ID: 2022009750BOURNS 3329H-G48-204 spec
- minimum resistance: 0.00 ohm
- maximum resistance: 200000.00 ohm
- resistance tolerance: 10%
- number of turns: 1
- power rating: 0.500 w
- voltage rating: 300.000 v
- taper: linear
- terminal type: pcb
- package: bulk
- item per pack: 1
- width: 0.250 IN, length: 0.000 IN, height: 0.180 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
BOURNS 3329H-G48-204 is a single turn cermet round trimming potentiometer. 3329H series trimpot. Sealed, small 1/4 inch size. Horizontal mounting. 240° adjustment angle. Absolute min resistance 1.0% or 2 ohms max.
Power rating of 3329H-G48-204 trimpot is 0.5W. Standard tolerance is 10%. Temperature Range -55 °C to +150 °C. Temperature Coefficient ±100 ppm/°C. 3329H-G48-204 is a top adjustable and has solderable through hole (pcb) terminals. 0.10 inch terminals spacing.
BOURNS 3329H-G48-204 data sheetBOURNS 3329H-G48-204 Equal Part Numbers
