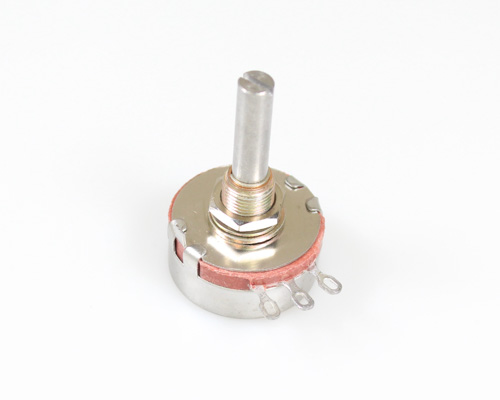

RV4NAYSG502A PEC potentiometer 5 kOhm, 2W RV4 RV4NAYSG Series
click picture to enlarge
Part Number:
RV4NAYSG502A
Manufacturer:PEC
Item ID: 2022009919PEC RV4NAYSG502A spec
- minimum resistance: 0.00 ohm
- maximum resistance: 5000.00 ohm
- resistance tolerance: 10%
- number of turns: 1
- power rating: 2.000 w
- voltage rating: 500.000 v
- taper: linear
- terminal type: solder
- package: bulk
- item per pack: 1
- diameter: 1.12 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
PEC RV4NAYSG502A RV4 style potentiometer. 5000 ohms 10% tolerance. Linear taper. 2 watt 500 volts rating.
RV4NAYSG502A is 1 turn potentiometer with solder terminals. Standard bushing. 1.250 shaft length. Slotted shaft.
PEC RV4NAYSG502A data sheetPEC RV4NAYSG502A Equal Part Numbers
