RV4LAYSD252A AB potentiometer 2.5 kOhm, 2W RV4 RV4LAYSD Series
Hurry Up! Last one left in stock!
click picture to enlarge
Part Number:
RV4LAYSD252A
Manufacturer:AB
Item ID: 2022010450AB RV4LAYSD252A spec
- minimum resistance: 0.00 ohm
- maximum resistance: 2500.00 ohm
- resistance tolerance: 10%
- number of turns: 1
- power rating: 2.000 w
- voltage rating: 500.000 v
- taper: linear
- terminal type: solder
- package: bulk
- item per pack: 1
- diameter: 1.12 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description

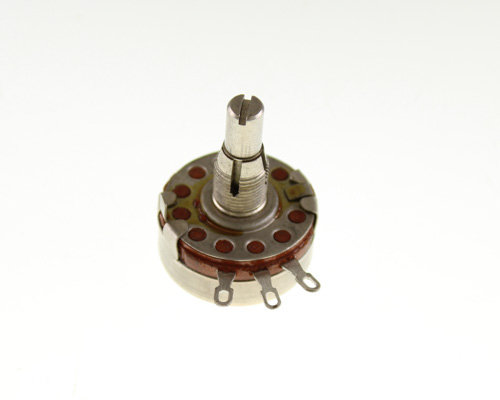

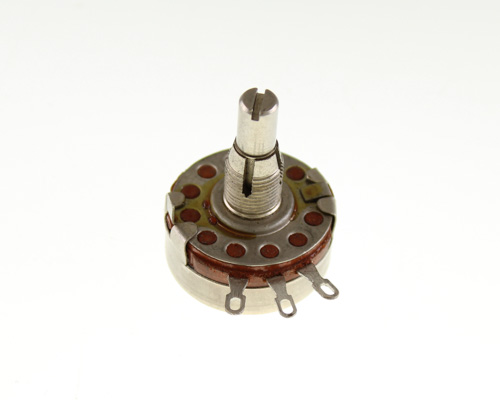

AB RV4LAYSD252A RV4 style potentiometer. 2500 ohms 10% tolerance. Linear taper. 2 watt 500 volts rating.
RV4LAYSD252A is 1 turn potentiometer with solder terminals. Locking bushing. 0.875 shaft length. Slotted shaft. Made in USA.
AB RV4LAYSD252A data sheetAB RV4LAYSD252A Equal Part Numbers
