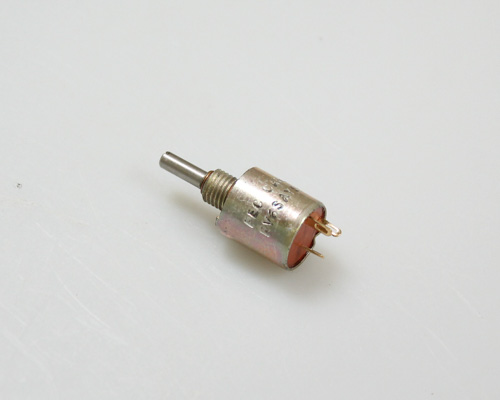

RV6SAYSA253E PEC potentiometer 25 kOhm, 0.5W RV6 RV6SAYSA Series
click picture to enlarge
Part Number:
RV6SAYSA253E
Manufacturer:PEC
Item ID: 2022010650PEC RV6SAYSA253E spec
- minimum resistance: 0.00 ohm
- maximum resistance: 25000.00 ohm
- resistance tolerance: 10%
- number of turns: 1
- power rating: 0.500 w
- voltage rating: 350.000 v
- taper: reverse logarithmic
- terminal type: solder
- package: bulk
- item per pack: 1
- diameter: 0.50 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
PEC RV6SAYSA253E RV6 style potentiometer. 25000 ohms 10% tolerance. Reverse logarithmic taper. 0.5 watt 500 volts rating.
RV6SAYSA253E is 1 turn potentiometer with solder terminals. Sealed bushing. 0.625 shaft length. Slotted shaft.
PEC RV6SAYSA253E data sheetPEC RV6SAYSA253E Equal Part Numbers
