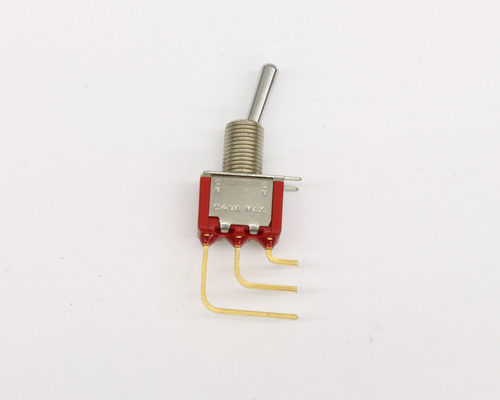

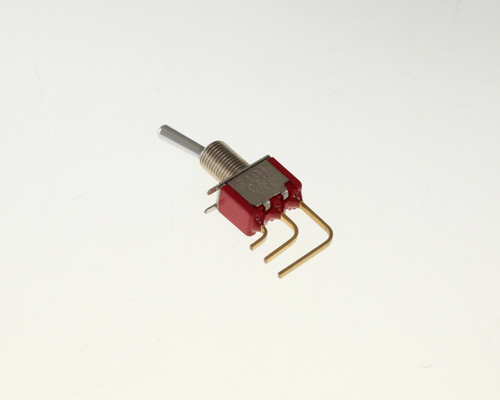

7101SYAV2BE C&K switch toggle miniature
click picture to enlarge
Part Number:
7101SYAV2BE
Manufacturer:C&K
Item ID: 2027003058C&K 7101SYAV2BE spec
- power rating: 0.4va 20v max
- mounting type: through hole
- switch function: spdt
- switch circuit: (on) - off - (on)
- number of positions: 2
- package: bulk
- item per pack: 302
- Diameter: 1.48 IN, Width: 0.26 IN, Height: 0.4 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 7101SYAV2BE miniature toggle Switch switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. Other rating: 0.4VA 20V Max. SPDT On-None-On switch function. 2 positions. Through hole mounting.
0.420in high actuator "S" . 0.350in high, keyway bushing "Y". Vertical right angle, PC thru-hole terminals "AV2". Gold contacts "B". Epoxy seal option "E". Typical applications in telecommunications, instrumentation and medical equipment.
