7211MD9AV2QE C&K switch toggle miniature

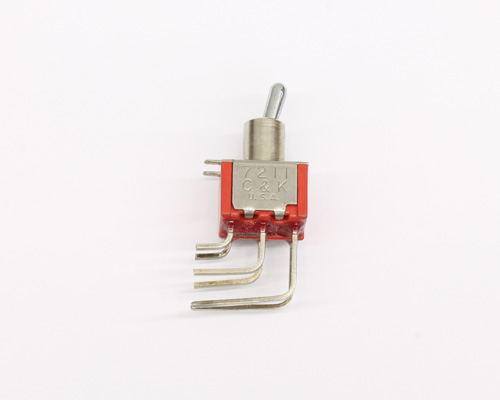

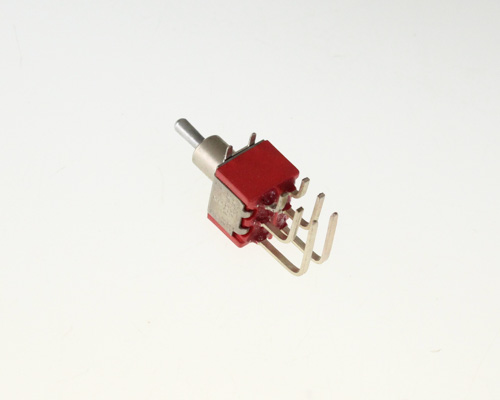

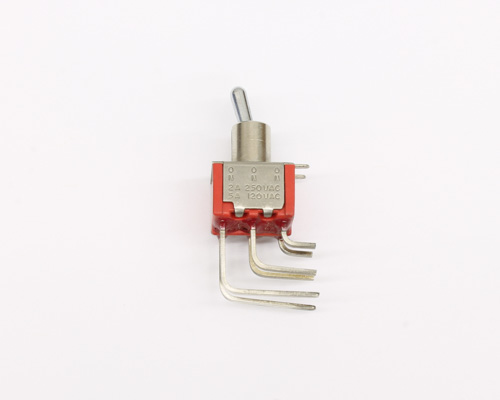

click picture to enlarge
Part Number:
7211MD9AV2QE
Manufacturer:C&K
Item ID: 2027003062C&K 7211MD9AV2QE spec
- current rating 1: 5.00 a
- voltage rating 1: 120 vac
- current rating 2: 2.00 a
- voltage rating 2: 250 vac
- power rating: -
- mounting type: through hole
- switch function: dpdt
- switch circuit: (on) - off - (on)
- number of positions: 3
- package: bulk
- item per pack: 1
- Diameter: 1.32 IN, Width: 0.45 IN, Height: 0.44 IN, Length: 0.5 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 7211MD9AV2QE miniature toggle switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. Other rating: 0.4VA 20V MAX. DPDT On-On-On switch function. 3 positions. through hole mounting.
Actuator "M" 0.200in high. Bushing "D9" 0.280in high, keyway. Terminals "AV2" Vertical right angle, PC thru-hole. Contacts "Q" Silver. Seal option "E" Epoxy. Typical applications in telecommunications, instrumentation and medical equipment.
C&K 7211MD9AV2QE data sheetQuestions and Answers
