8121D9AGE C&K switch pushbutton miniature

Name: 8121D9AGE
Brand: C&K
SKU: 2027003087
Price: 5.0000 USD
Availability: InStock

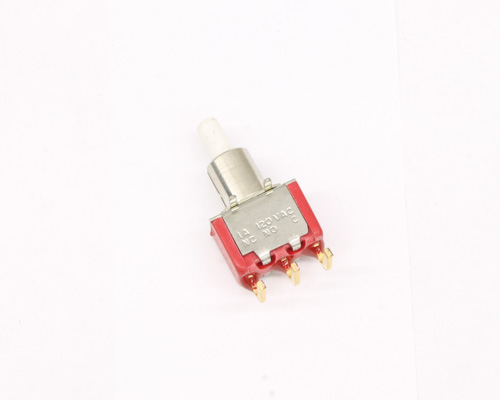

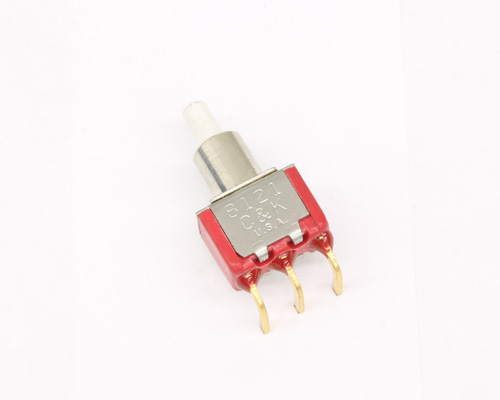

Picture of 8121D9AGE C&K switch pushbutton miniature — click picture to enlarge

Part Number:

8121D9AGE

Manufacturer:

C&K

Item ID: 2027003087

C&K 8121D9AGE spec

current rating 1: 1.00 a
voltage rating 1: 120 vac
current rating 2: 1.00 a
voltage rating 2: 28 vdc
power rating: 0.4va 20v max
mounting type: through hole
switch function: spdt
switch circuit: (on) - off - (on)
number of positions: 2
package: bulk
item per pack: 1
Diameter: 0.5 IN, Width: 1.03 IN, Height: 0.79 IN

Item in stock
can ship right now

(number in the box shows required min quantity)

C&K 8121D9AGE pricing

Qty

25+

Unit Price

5.00

3.99

Price

20.00

99.75

Submit an RFQ

Did you see a better price somewhere else?
Request Price Match!

Description

C&K 8121D9AGE miniature pushbutton switch. Amp rating 1 A at 120 VAC. Other rating: 0.4VA 20V MAX. SPDT On-(On) switch function. 2 positions. Through hole mounting.

Actuator "" Snap-in. Bushing "D9" 0.280in high, keyway. Terminals "A" Right angle, PC thru-hole. Contacts "G" Gold over silver. Seal option "E" Epoxy. Momentary switch. Typical applications in computer peripherals, instrumentation and telecommunications equipment.

spec sheet icon C&K 8121D9AGE data sheet
