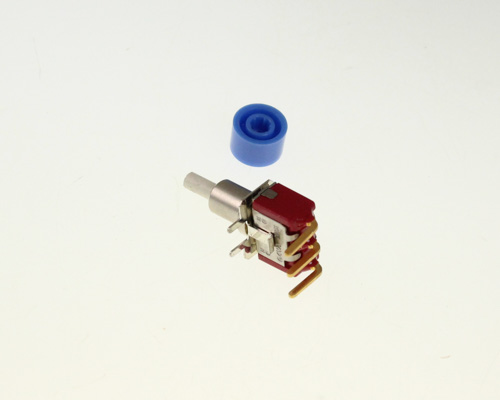

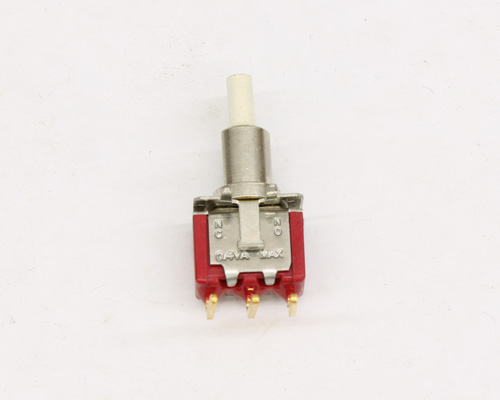

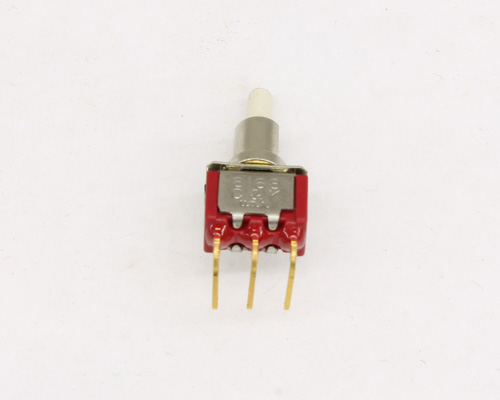

8168SH9ABE7 C&K switch pushbutton miniature
click picture to enlarge
Part Number:
8168SH9ABE7
Manufacturer:C&K
Item ID: 2027003121C&K 8168SH9ABE7 spec
- power rating: 0.4va 20v max
- mounting type: through hole
- switch function: spdt
- switch circuit: on - none - (on)
- number of positions: 2
- package: bulk
- item per pack: 1
- Diameter: 1.15 IN, Width: 0.28 IN, Height: 0.45 IN, Length: 0.5 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 8168SH9ABE7 miniature Pushbutton switch. Amp rating 6 A at 120 VAC. 3 A at 250 VAC. Other rating: 6A 28Vdc. SPDT ON - NONE - (ON) switch function. 2 positions. Through hole mounting.
0.710in high plunger with .375in dia. cap actuator "S". 0.300in high, flat, hi torque bushing "H9". Right angle, PC thru-hole terminals "A". Gold contacts "B". Epoxy seal option "E". Blue cap color "7". Momentary switch. Typical applications in computer peripherals, instrumentation, telecommunications and networking equipment. Features long travel, long life contact design.
