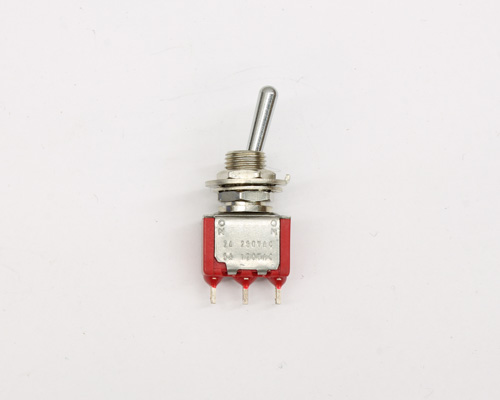

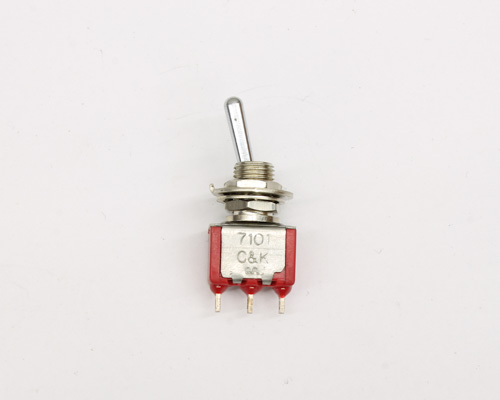

7101SH3ZQE C&K switch toggle miniature
click picture to enlarge
Part Number:
7101SH3ZQE
Manufacturer:C&K
Item ID: 2027003187C&K 7101SH3ZQE spec
- current rating 1: 5.00 a
- voltage rating 1: 120 vac
- current rating 2: 2.00 a
- voltage rating 2: 250 vac
- power rating: -
- mounting type: solder
- switch function: spdt
- switch circuit: on - none - on
- number of positions: 2
- package: bulk
- item per pack: 1
- Diameter: 1.06 IN, Width: 0.77 IN, Height: 0.58 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 7101SH3ZQE miniature toggle switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. Other rating: 0.4VA 20V MAX. SPDT ON - NONE - ON switch function. 2 positions. Solder mounting.
0.420in high actuator "S". 0.315in high, keyway bushing "H3". Solder lug terminals "Z". Silver contacts "Q". Epoxy seal option "E". Typical applications in telecommunications, instrumentation and medical equipment.
