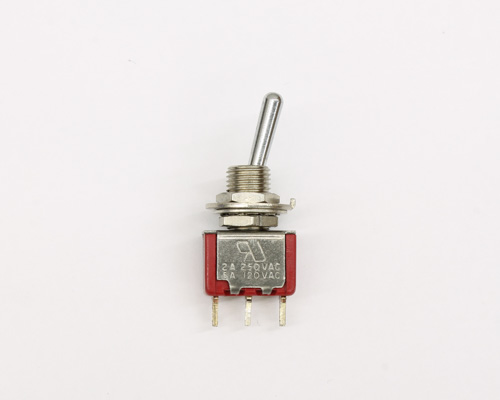

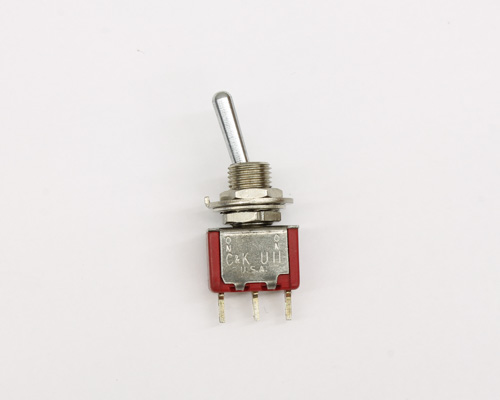

7101SYZBE C&K switch toggle miniature
click picture to enlarge
Part Number:
7101SYZBE
Manufacturer:C&K
Item ID: 2027003203C&K 7101SYZBE spec
- power rating: 0.4va 20v max
- mounting type: solder
- switch function: spdt
- switch circuit: on - none - on
- number of positions: 2
- package: bulk
- item per pack: 1
- Diameter: 1.29 IN, Width: 0.5 IN, Height: 0.88 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 7101SYZBE miniature toggle switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. Other rating: 0.4VA 20V MAX. SPDT ON - NONE - ON switch function. 2 positions. Solder mounting.
0.420in high actuator "S". 0.350in high, keyway bushing "Y". Solder lug terminals "Z". Gold contacts "B". Epoxy seal option "E". Typical applications in telecommunications, instrumentation and medical equipment.
