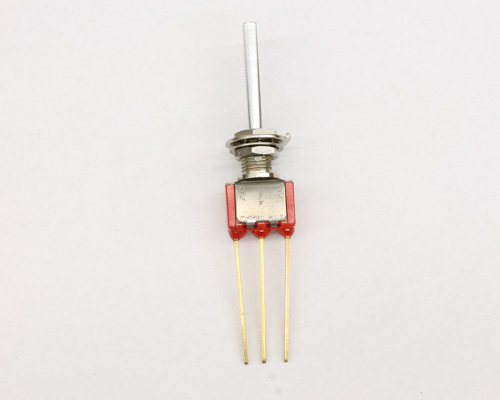

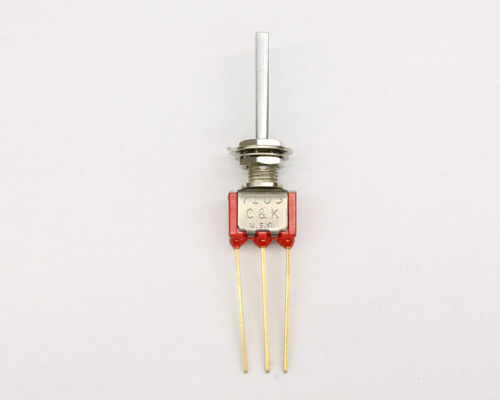

7103P1HW1BE C&K switch toggle miniature
click picture to enlarge
Part Number:
7103P1HW1BE
Manufacturer:C&K
Item ID: 2027003222C&K 7103P1HW1BE spec
- power rating: 0.4va 20v max
- mounting type: through hole
- switch function: spdt
- switch circuit: on - off - on
- number of positions: 3
- package: bulk
- item per pack: 1
- Diameter: 2.53 IN, Width: 1.1 IN, Height: 0.76 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 7103P1HW1BE miniature toggle switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. Other rating: 0.4VA 20V MAX. SPDT ON - OFF - ON switch function. 3 positions. Through hole mounting.
Flatted, anti-rotation, 0.840in high actuator "P1". 0.296in high, flat bushing "H". 0.964in long, wire wrap terminals "W1". Gold contacts "B". Epoxy seal option "E". Typical applications in telecommunications, instrumentation and medical equipment.
