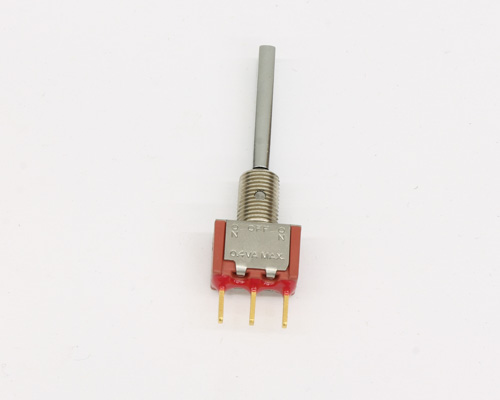

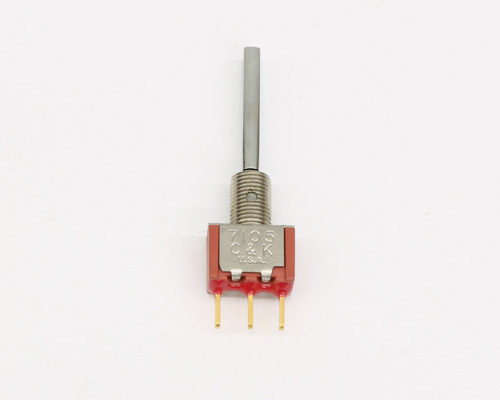

7105P1YZ3BE C&K switch toggle miniature
click picture to enlarge
Part Number:
7105P1YZ3BE
Manufacturer:C&K
Item ID: 2027003238C&K 7105P1YZ3BE spec
- power rating: 0.4va 20v max
- mounting type: through hole
- switch function: spdt
- switch circuit: (on) - off - (on)
- number of positions: 3
- package: bulk
- item per pack: 1
- Diameter: 1.8 IN, Width: 0.51 IN, Height: 1.35 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 7105P1YZ3BE miniature toggle switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. Other rating: 0.4VA 20V MAX. SPDT (ON) - OFF - (ON) switch function. 3 positions. Through hole mounting.
Flatted, anti-rotation, 0.840in high actuator "P1". 0.350in high, keyway bushing "Y". Quick connect terminals "Z3". Gold contacts "B". Epoxy seal option "E". Momentary switch. Typical applications in telecommunications, instrumentation and medical equipment.
