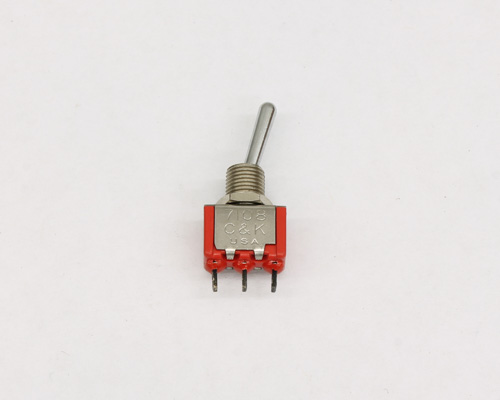

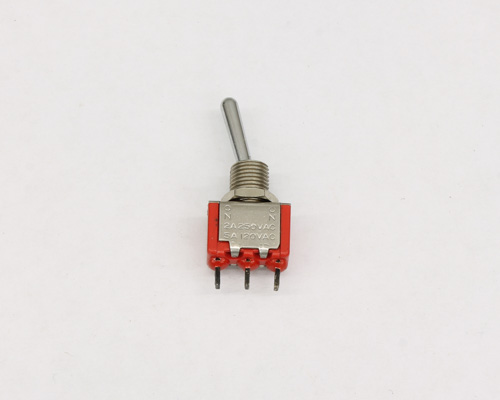

7108SDZQE C&K switch toggle miniature
click picture to enlarge
Part Number:
7108SDZQE
Manufacturer:C&K
Item ID: 2027003275C&K 7108SDZQE spec
- current rating 1: 5.00 a
- voltage rating 1: 120 vac
- current rating 2: 2.00 a
- voltage rating 2: 250 vac
- power rating: -
- mounting type: solder
- switch function: spdt
- switch circuit: on - none - (on)
- number of positions: 2
- package: bulk
- item per pack: 1
- Diameter: 1.3 IN, Width: 0.51 IN, Height: 1.01 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 7108SDZQE miniature toggle switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. Other rating: 0.4VA 20V MAX. SPDT ON - NONE - (ON) switch function. 2 positions. Solder mounting.
0.420in high actuator "S". 0.280in high, keyway bushing "D". Solder lug terminals "Z". Silver contacts "Q". Epoxy seal option "E". Momentary switch. Typical applications in telecommunications, instrumentation and medical equipment.
C&K 7108SDZQE data sheetQuestions and Answers
