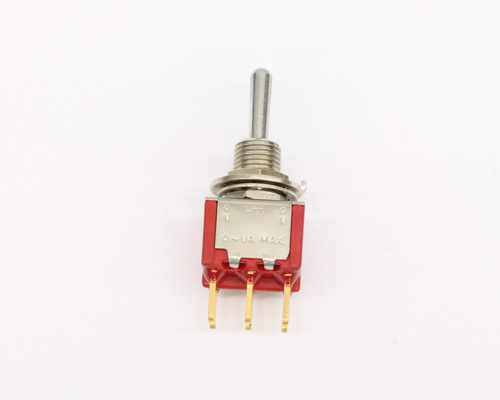

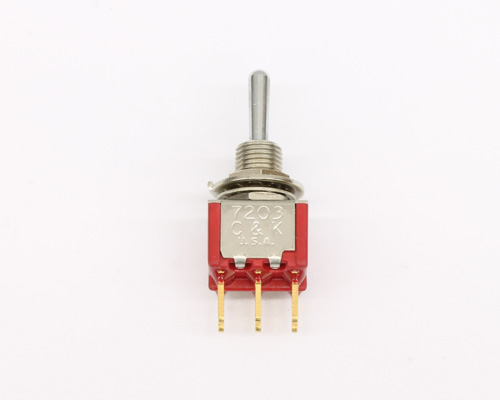

7201SYCBE C&K switch toggle miniature
Hurry Up! Limited quantity left in stock!
click picture to enlarge
Part Number:
7201SYCBE
Manufacturer:C&K
Item ID: 2027003321C&K 7201SYCBE spec
- power rating: 0.4va 20v max
- mounting type: through hole
- switch function: dpdt
- switch circuit: on - none - on
- number of positions: 2
- package: bulk
- item per pack: 1
- Diameter: 1.17 IN, Width: 0.49 IN, Height: 0.91 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 7201SYCBE miniature toggle switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. Other rating: 0.4VA 20V MAX. DPDT ON - NONE - ON switch function. 2 positions. Through hole mounting.
0.420in high actuator "S". 0.350in high, keyway bushing "Y". PC thru-hole terminals "C". Gold contacts "B". Epoxy seal option "E". Typical applications in telecommunications, instrumentation and medical equipment.
C&K 7201SYCBE data sheetQuestions and Answers
