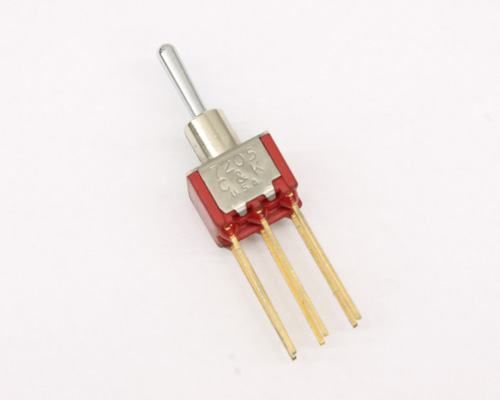

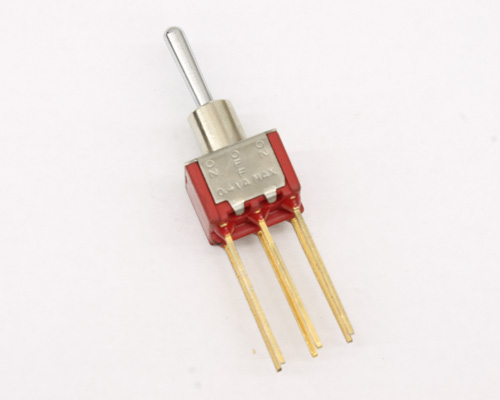

7205SD9WBE C&K switch toggle miniature
click picture to enlarge
Part Number:
7205SD9WBE
Manufacturer:C&K
Item ID: 2027003376C&K 7205SD9WBE spec
- power rating: 0.4va 20v max
- mounting type: through hole
- switch function: dpdt
- switch circuit: (on) - off - (on)
- number of positions: 3
- package: bulk
- item per pack: 1
- Diameter: 0.5 IN, Width: 0.45 IN, Height: 1.85 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 7205SD9WBE miniature toggle switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. Other rating: 0.4VA 20V MAX. DPDT (ON) - OFF - (ON) switch function. 3 positions. Through hole mounting.
0.420in high actuator "S". 0.280in high, keyway bushing "D9". 0.750in long, wire wrap terminals "W". Gold contacts "B". Epoxy seal option "E". Momentary switch. Typical applications in telecommunications, instrumentation and medical equipment.
C&K 7205SD9WBE data sheetQuestions and Answers
