7213L2D9AV2B C&K switch toggle miniature

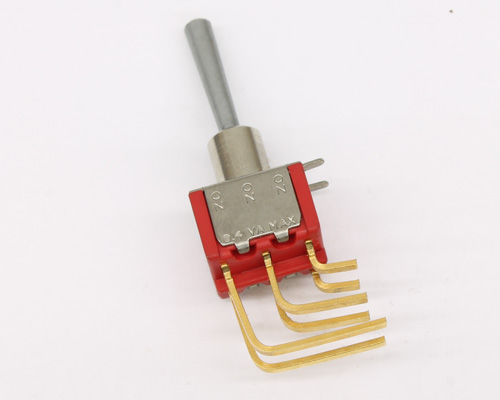

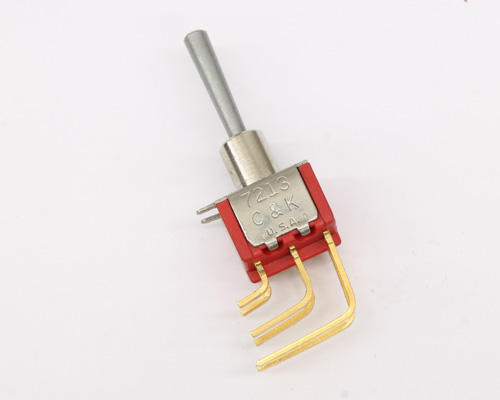

click picture to enlarge
Part Number:
7213L2D9AV2B
Manufacturer:C&K
Item ID: 2027003404C&K 7213L2D9AV2B spec
- power rating: 0.4va 20v max
- mounting type: through hole
- switch function: dpdt
- switch circuit: on - on - (on)
- number of positions: 3
- package: bulk
- item per pack: 1
- Diameter: 0.5 IN, Width: 0.45 IN, Height: 1.75 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 7213L2D9AV2B miniature toggle switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. Other rating: 0.4VA 20V MAX. DPDT ON - ON - (ON) switch function. 3 positions. Through hole mounting.
0.550in high actuator "L2". 0.280in high, keyway bushing "D9". Vertical right angle, PC thru-hole terminals "AV2". Gold contacts "B". Momentary switch. Typical applications in telecommunications, instrumentation and medical equipment.
C&K 7213L2D9AV2B data sheetQuestions and Answers
