7215P3YW4BE C&K switch toggle miniature

Name: 7215P3YW4BE
Brand: C&K
SKU: 2027003410
Price: 15.0000 USD
Availability: InStock

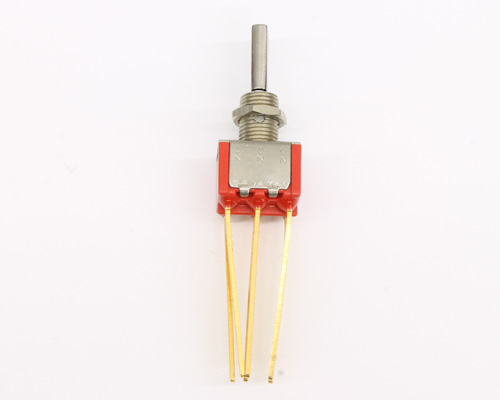

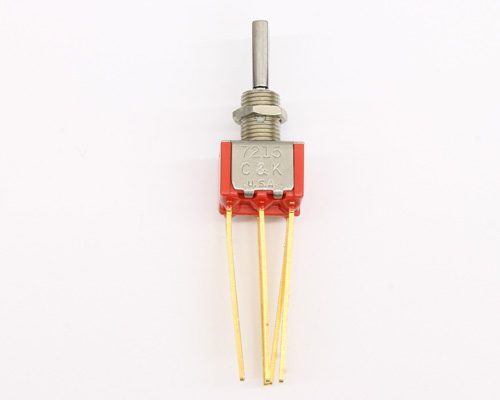

Picture of 7215P3YW4BE C&K switch toggle miniature — click picture to enlarge

Part Number:

7215P3YW4BE

Manufacturer:

C&K

Item ID: 2027003410

C&K 7215P3YW4BE spec

power rating: 0.4va 20v max
mounting type: through hole
switch function: dpdt
switch circuit: (on) - on - (on)
number of positions: 3
package: bulk
item per pack: 1
Diameter: 2.33 IN, Width: 0.5 IN, Height: 1.74 IN

Item in stock
can ship right now

(number in the box shows required min quantity)

C&K 7215P3YW4BE pricing

Qty

25+

Unit Price

15.00

13.29

Price

30.00

332.25

Submit an RFQ

Did you see a better price somewhere else?
Request Price Match!

Description

C&k 7215P3YW4BE miniature toggle switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. Other rating: 0.4VA 20V MAX. DPDT (ON) - ON - (ON) switch function. 3 positions. Through hole mounting.

Flatted, anti-rotation, 0.450in high actuator "P3". 0.350in high, keyway bushing "Y". 1.062in long, wire wrap terminals "W4". Gold contacts "B". Epoxy seal option "E". Momentary switch. Typical applications in telecommunications, instrumentation and medical equipment.

spec sheet icon C&K 7215P3YW4BE data sheet
