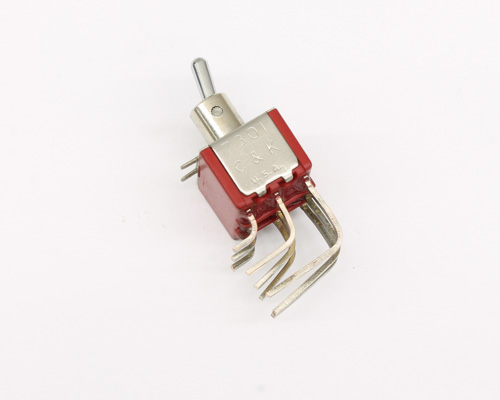

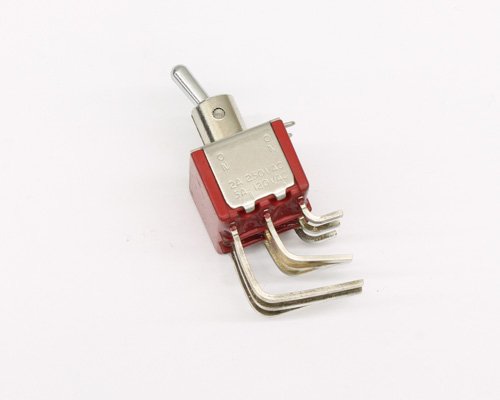

7301MD9AV2QE C&K switch toggle miniature
click picture to enlarge
Part Number:
7301MD9AV2QE
Manufacturer:C&K
Item ID: 2027003420C&K 7301MD9AV2QE spec
- current rating 1: 5.00 a
- voltage rating 1: 120 vac
- current rating 2: 2.00 a
- voltage rating 2: 250 vac
- power rating: -
- mounting type: through hole
- switch function: 3pdt
- switch circuit: on - none - on
- number of positions: 2
- package: bulk
- item per pack: 1
- Diameter: 1.48 IN, Width: 0.66 IN, Height: 0.97 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 7301MD9AV2QE miniature toggle switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. Other rating: 0.4VA 20V MAX. 3PDT ON - NONE - ON switch function. 2 positions. Through hole mounting.
0.200in high actuator "M". 0.280in high, keyway bushing "D9". Vertical right angle, PC thru-hole terminals "AV2". Silver contacts "Q". Epoxy seal option "E". Typical applications in telecommunications, instrumentation and medical equipment.
C&K 7301MD9AV2QE data sheetQuestions and Answers
