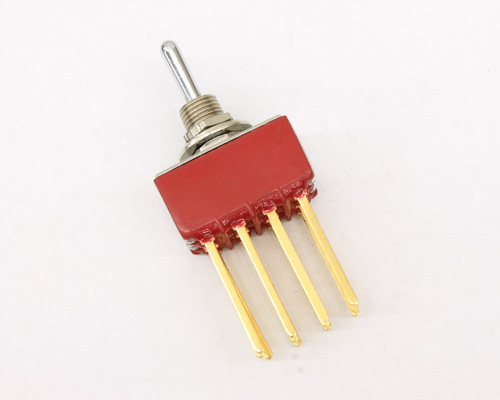

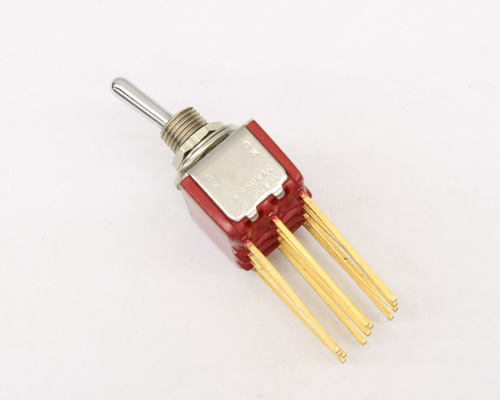

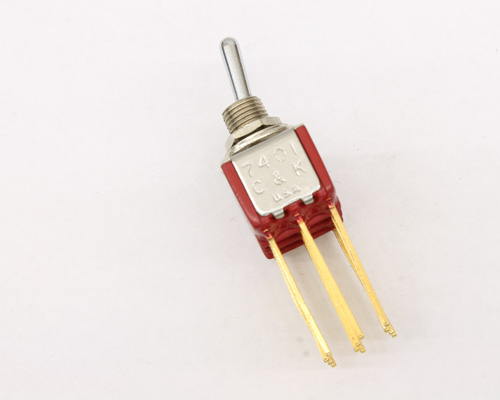

7401SYWGE C&K switch toggle miniature
click picture to enlarge
Part Number:
7401SYWGE
Manufacturer:C&K
Item ID: 2027003441C&K 7401SYWGE spec
- current rating 1: 5.00 a
- voltage rating 1: 120 vac
- current rating 2: 2.00 a
- voltage rating 2: 250 vac
- power rating: 0.4va 20v max
- mounting type: through hole
- switch function: 4pdt
- switch circuit: on - none - on
- number of positions: 2
- package: bulk
- item per pack: 1
- Diameter: 0.5 IN, Width: 0.85 IN, Height: 1.9 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 7401SYWGE miniature toggle switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. Other rating: 0.4VA 20V MAX. 4PDT ON - NONE - ON switch function. 2 positions. Through hole mounting.
0.420in high actuator "S". 0.350in high, keyway bushing "Y". 0.750in long, wire wrap terminals "W". Gold over silver contacts "G". Epoxy seal option "E". Typical applications in telecommunications, instrumentation and medical equipment.
C&K 7401SYWGE data sheetQuestions and Answers
