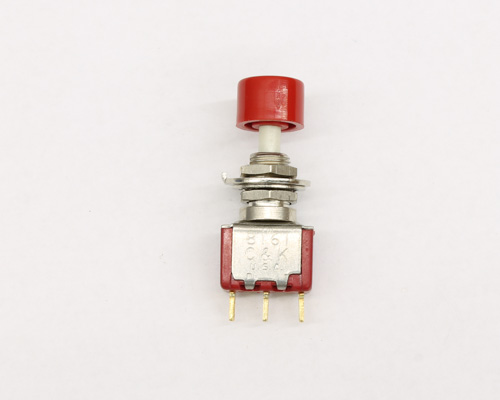

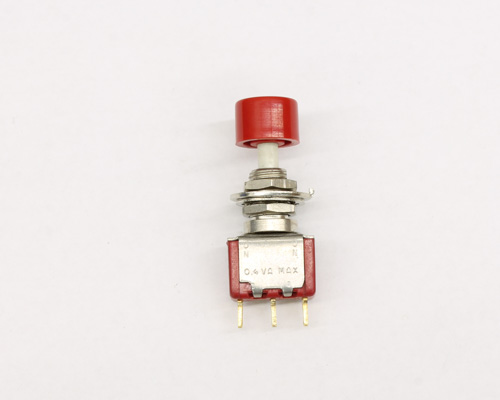

8161SHZBE2 C&K switch pushbutton miniature
Hurry Up! Limited quantity left in stock!
click picture to enlarge
Part Number:
8161SHZBE2
Manufacturer:C&K
Item ID: 2027003502C&K 8161SHZBE2 spec
- power rating: 0.4va 20v max
- mounting type: solder
- switch function: spdt
- switch circuit: on - none - on
- number of positions: 2
- package: bulk
- item per pack: 1
- Diameter: 1.28 IN, Width: 0.97 IN, Height: 0.61 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 8161SHZBE2 miniature pushbutton switch. Amp rating 6 A at 120 VAC. 3 A at 250 VAC. Other rating: 6A 28Vdc. SPDT ON - NONE - ON switch function. 2 positions. Solder mounting.
0.710in high plunger with .375in dia. cap actuator "S". 0.300in high, flat, hi torque bushing "H". Solder lug terminals "Z". Gold contacts "B". Epoxy seal option "E". Black cap color "2". Momentary switch. Typical applications in computer peripherals, instrumentation, telecommunications and networking equipment. Features long travel, long life contact design.
C&K 8161SHZBE2 data sheetQuestions and Answers
