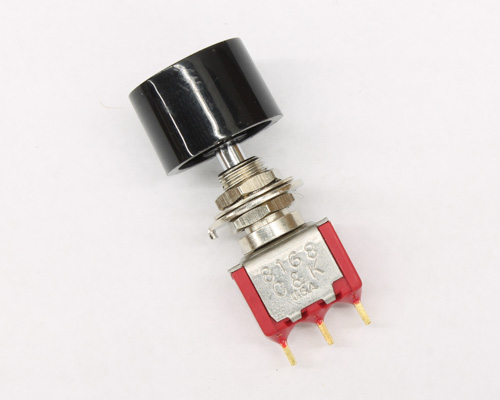

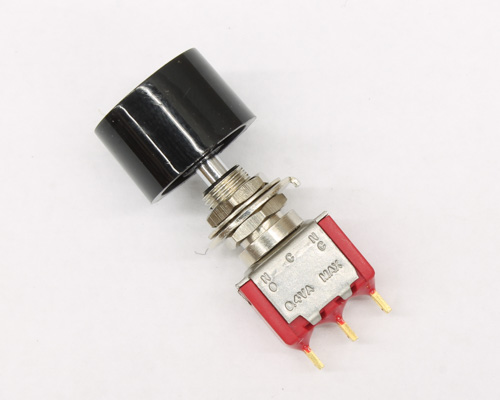

8168L1HZBE2 C&K switch pushbutton miniature
click picture to enlarge
Part Number:
8168L1HZBE2
Manufacturer:C&K
Item ID: 2027003509C&K 8168L1HZBE2 spec
- power rating: 0.4va 20v max
- mounting type: solder
- switch function: spdt
- switch circuit: on - none - (on)
- number of positions: 2
- package: bulk
- item per pack: 1
- Diameter: 0.5 IN, Width: 0.26 IN, Height: 1.4 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 8168L1HZBE2 miniature pushbutton switch. Amp rating 6 A at 120 VAC. 3 A at 250 VAC. Other rating: 6A 28Vdc. SPDT ON - NONE - (ON) switch function. 2 positions. Solder mounting.
0.740in high plunger with 0.590in dia. cap actuator "L1". 0.300in high, flat, hi torque bushing "H". Solder lug terminals "Z". Gold contacts "B". Epoxy seal option "E". Black cap color "2". Momentary switch. Typical applications in computer peripherals, instrumentation, telecommunications and networking equipment. Features long travel, long life contact design.
