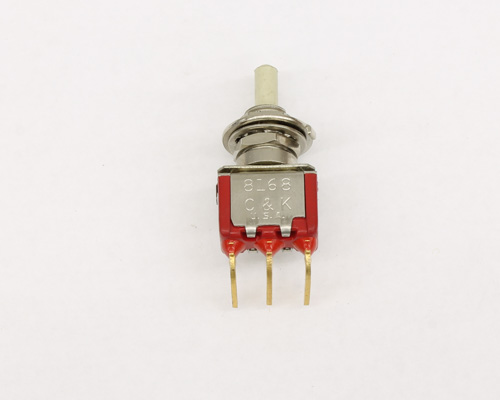

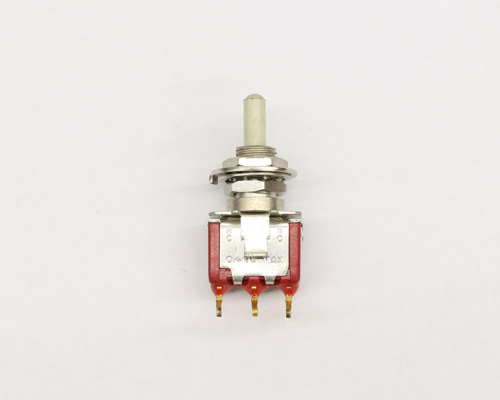

8168SHABE C&K switch pushbutton miniature
Hurry Up! Limited quantity left in stock!
click picture to enlarge
Part Number:
8168SHABE
Manufacturer:C&K
Item ID: 2027003514C&K 8168SHABE spec
- power rating: 0.4va 20v max
- mounting type: through hole
- switch function: spdt
- switch circuit: on - none - (on)
- number of positions: 2
- package: bulk
- item per pack: 1
- Diameter: 1.12 IN, Width: 0.35 IN, Height: 0.85 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 8168SHABE miniature pushbutton switch. Amp rating 6 A at 120 VAC. 3 A at 250 VAC. Other rating: 6A 28Vdc. SPDT ON - NONE - (ON) switch function. 2 positions. Through hole mounting.
0.710in high plunger with .375in dia. cap actuator "S". 0.300in high, flat, hi torque bushing "H". Right angle, PC thru-hole terminals "A". Gold contacts "B". Epoxy seal option "E". Momentary switch. Typical applications in computer peripherals, instrumentation, telecommunications and networking equipment. Features long travel, long life contact design.
C&K 8168SHABE data sheetQuestions and Answers
