8261J82ZGE C&K switch pushbutton miniature

Name: 8261J82ZGE
Brand: C&K
SKU: 2027003525
Price: 7.5000 USD
Availability: InStock

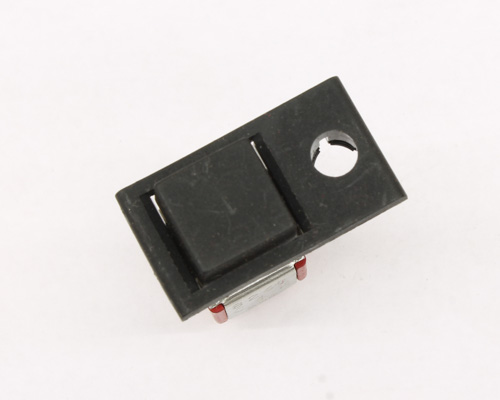

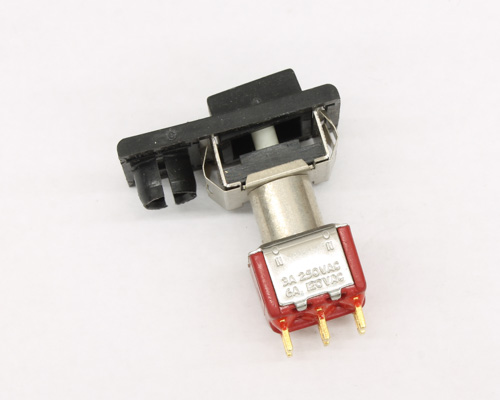

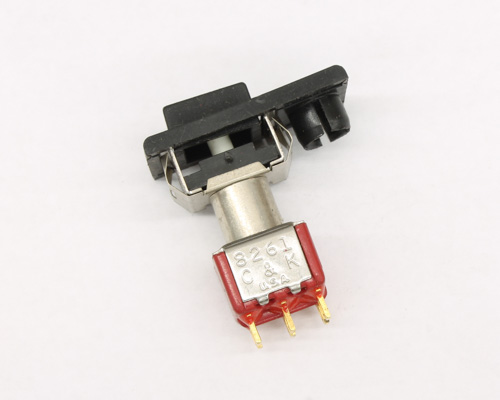

Picture of 8261J82ZGE C&K switch pushbutton miniature — click picture to enlarge

Part Number:

8261J82ZGE

Manufacturer:

C&K

Item ID: 2027003525

C&K 8261J82ZGE spec

current rating 1: 6.00 a
voltage rating 1: 120 vac
current rating 2: 3.00 a
voltage rating 2: 250 vac
power rating: 0.4va 20v max
mounting type: solder
switch function: dpdt
switch circuit: on - none - on
number of positions: 2
package: bulk
item per pack: 1
Diameter: 1.1 IN, Width: 0.615 IN, Height: 1.3 IN

Item in stock
can ship right now

(number in the box shows required min quantity)

C&K 8261J82ZGE pricing

Qty

25+

Unit Price

7.50

6.25

Price

22.50

156.25

Submit an RFQ

Did you see a better price somewhere else?
Request Price Match!

Description

C&k 8261J82ZGE miniature pushbutton switch. Amp rating 6 A at 120 VAC. 3 A at 250 VAC. Other rating: 6A 28Vdc. DPDT ON - NONE - ON switch function. 2 positions. Solder mounting.

Snap-in w/frame for LED actuator "J82". No bushing bushing. Solder lug terminals "Z". Gold over silver contacts "G". Epoxy seal option "E". Momentary switch. Typical applications in computer peripherals, instrumentation, telecommunications and networking equipment. Features long travel, long life contact design.

spec sheet icon C&K 8261J82ZGE data sheet
