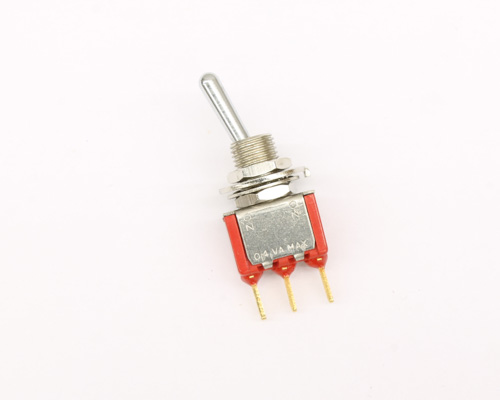

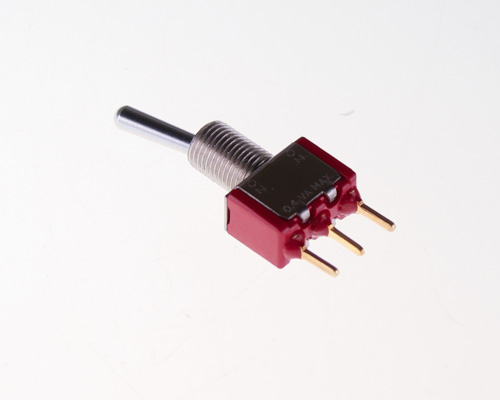

7108SYCBE C&K switch toggle miniature
click picture to enlarge
Part Number:
7108SYCBE
Manufacturer:C&K
Item ID: 2027003584C&K 7108SYCBE spec
- power rating: 0.4va 20v max
- mounting type: through hole
- switch function: spdt
- switch circuit: on - none - (on)
- number of positions: 2
- package: bulk
- item per pack: 1
- Diameter: 0.5 IN, Width: 0.25 IN, Height: 1.3 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 7108SYCBE miniature toggle switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. Other rating: 0.4VA 20V MAX. SPDT ON - NONE - (ON) switch function. 2 positions. Through hole mounting.
0.420in high actuator "S". 0.350in high, keyway bushing "Y". PC thru-hole terminals "C". Gold contacts "B". Epoxy seal option "E". Momentary switch. Typical applications in telecommunications, instrumentation and medical equipment.
C&K 7108SYCBE data sheetQuestions and Answers
