8168J81CQE C&K switch pushbutton miniature

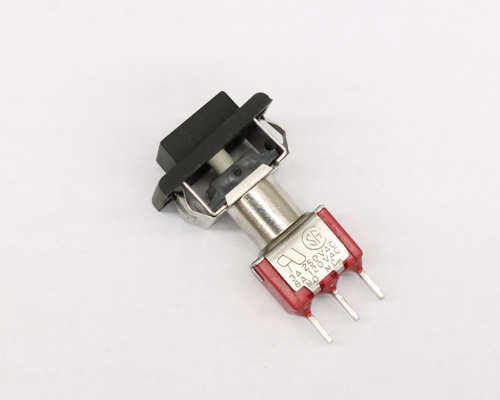

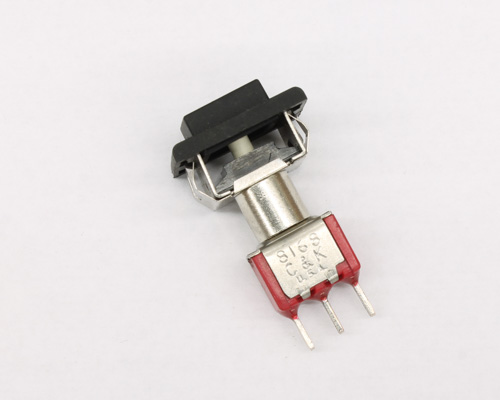

click picture to enlarge
Part Number:
8168J81CQE
Manufacturer:C&K
Item ID: 2027003591C&K 8168J81CQE spec
- current rating 1: 6.00 a
- voltage rating 1: 120 vac
- current rating 2: 3.00 a
- voltage rating 2: 250 vac
- power rating: -
- mounting type: through hole
- switch function: spdt
- switch circuit: on - none - (on)
- number of positions: 2
- package: bulk
- item per pack: 1
- Diameter: 0.75 IN, Width: 0.6 IN, Height: 1.4 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 8168J81CQE miniature pushbutton switch. Amp rating 6 A at 120 VAC. 3 A at 250 VAC. Other rating: 6A 28Vdc. SPDT ON - NONE - (ON) switch function. 2 positions. Through hole mounting.
Snap-in w/frame actuator "J81". No bushing bushing. PC thru-hole terminals "C". Silver contacts "Q". Epoxy seal option "E". Momentary switch. Typical applications in computer peripherals, instrumentation, telecommunications and networking equipment. Features long travel, long life contact design.
C&K 8168J81CQE data sheetC&K 8168J81CQE Equal Part Numbers
8168J81CQE
