7101MD9ABE C&K switch toggle miniature

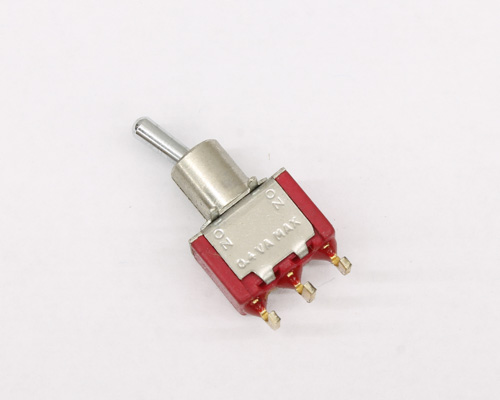

Picture of 7101MD9ABE C&K switch toggle  miniature

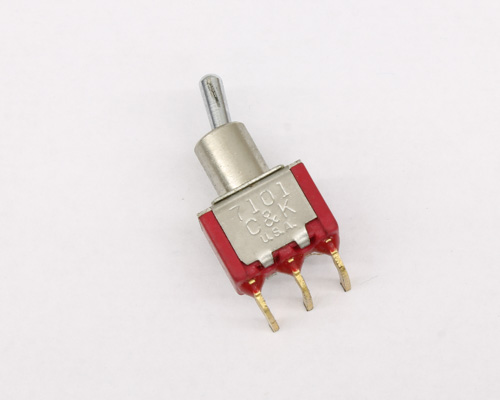

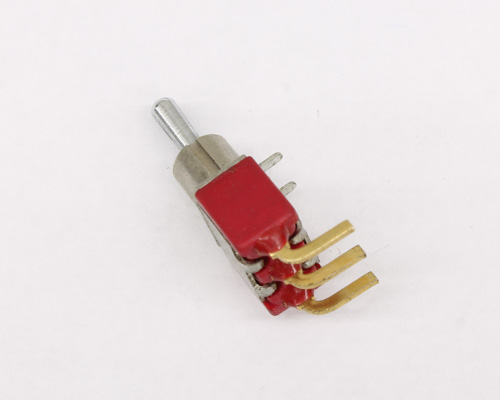

7101MD9ABE by C&K picture #1 7101MD9ABE by C&K picture #2 7101MD9ABE by C&K picture #3
click picture to enlarge
Part Number:

7101MD9ABE

Manufacturer:

C&K

Item ID: 2027003599

C&K 7101MD9ABE spec

  • power rating: 0.4va 20v max
  • mounting type: through hole
  • switch function: spdt
  • switch circuit: on - none - on
  • number of positions: 2
  • package: bulk
  • item per pack: 1
  • Diameter: 0.5 IN, Width: 0.26 IN, Height: 1.1 IN

Item in stock
can ship right now

Quantity:

(number in the box shows required min quantity)

C&K 7101MD9ABE pricing

Qty
2
25
25+
Unit Price
5.00
3.99
Price
10.00
99.75

Did you see a better price somewhere else?
Request Price Match!

Description

C&k 7101MD9ABE miniature toggle switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. Other rating: 0.4VA 20V MAX. SPDT ON - NONE - ON switch function. 2 positions. Through hole mounting.

0.200in high actuator "M". 0.280in high, keyway bushing "D9". Right angle, PC thru-hole terminals "A". Gold contacts "B". Epoxy seal option "E". Typical applications in telecommunications, instrumentation and medical equipment.

spec sheet icon C&K 7101MD9ABE data sheet

PQ: 2 | PWIP: 0.01 | REF: 175
