7203MD9AGE C&K switch toggle miniature
click picture to enlarge
Part Number:
7203MD9AGE
Manufacturer:C&K
Item ID: 2027003604C&K 7203MD9AGE spec
- current rating 1: 5.00 a
- voltage rating 1: 120 vac
- current rating 2: 2.00 a
- voltage rating 2: 250 vac
- power rating: 0.4va 20v max
- mounting type: through hole
- switch function: dpdt
- switch circuit: on - off - on
- number of positions: 3
- package: bulk
- item per pack: 1
- Diameter: 0.5 IN, Width: 0.45 IN, Height: 1.2 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description

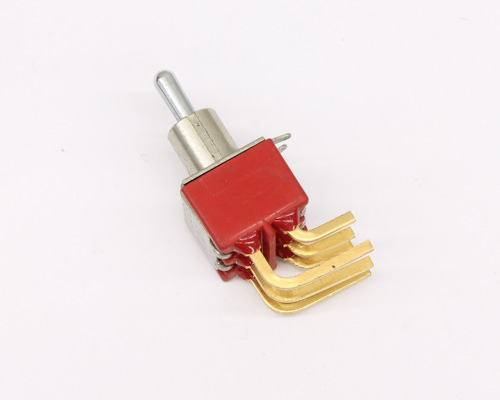

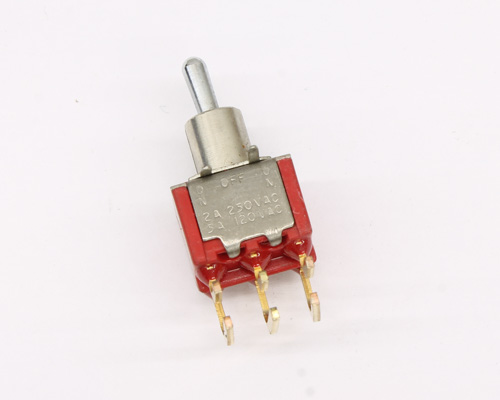

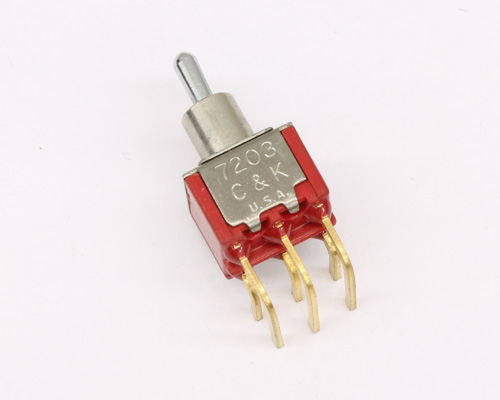

C&k 7203MD9AGE miniature toggle switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. Other rating: 0.4VA 20V MAX. DPDT ON - OFF - ON switch function. 3 positions. Through hole mounting.
0.200in high actuator "M". 0.280in high, keyway bushing "D9". Right angle, PC thru-hole terminals "A". Gold over silver contacts "G". Epoxy seal option "E". Typical applications in telecommunications, instrumentation and medical equipment.
C&K 7203MD9AGE data sheetQuestions and Answers
