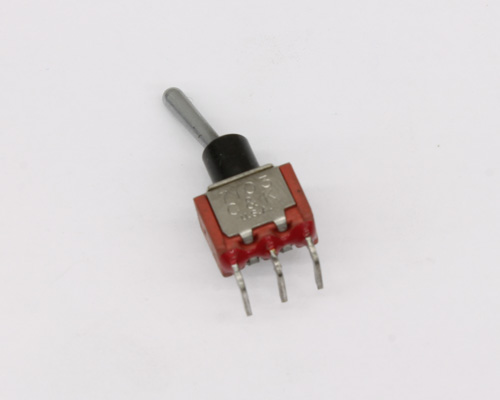

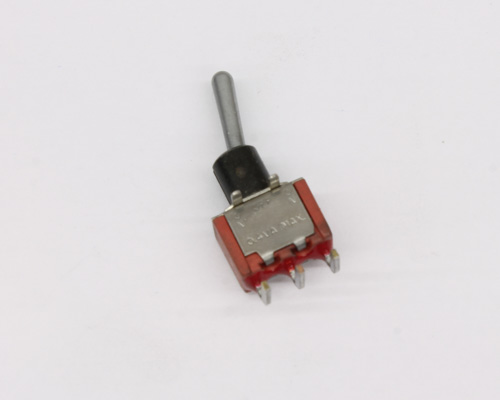

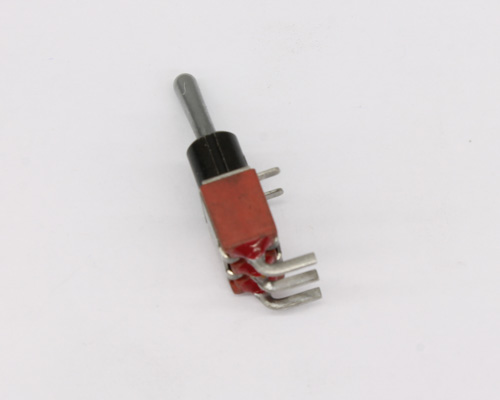

7103SPD9ABE C&K switch toggle miniature
click picture to enlarge
Part Number:
7103SPD9ABE
Manufacturer:C&K
Item ID: 2027003615C&K 7103SPD9ABE spec
- power rating: 0.4va 20v max
- mounting type: through hole
- switch function: spdt
- switch circuit: on - off - on
- number of positions: 3
- package: bulk
- item per pack: 1
- Length: 0.5 IN, Width: .26 IN, Height: 1.3 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 7103SPD9ABE miniature toggle switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. Other rating: 0.4VA 20V MAX. SPDT ON - OFF - ON switch function. 3 positions. Through hole mounting.
Anti-rotation, 0.420in high actuator "SP". 0.280in high, black color anodized keyway bushing "D9". Right angle, PC thru-hole terminals "A". Gold contacts "B". Epoxy seal option "E". Typical applications in telecommunications, instrumentation and medical equipment.
