7101MD9A2BE C&K switch toggle miniature

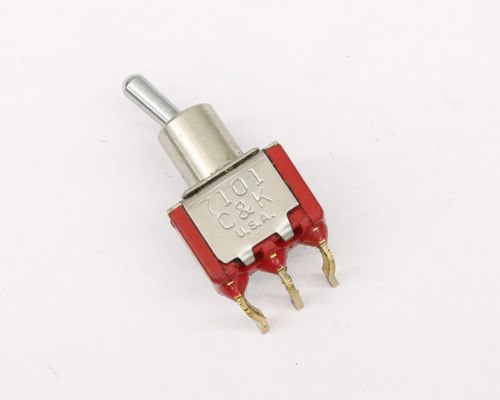

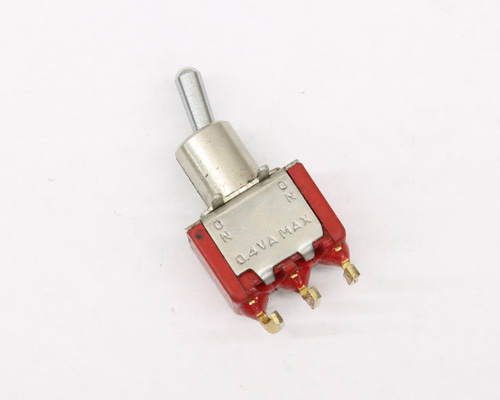

Picture of 7101MD9A2BE C&K switch toggle  miniature
7101MD9A2BE by C&K picture #1 7101MD9A2BE by C&K picture #2
click picture to enlarge
Part Number:

7101MD9A2BE

Manufacturer:

C&K

Item ID: 2027003616

C&K 7101MD9A2BE spec

  • power rating: 0.4va 20v max
  • mounting type: through hole
  • switch function: spdt
  • switch circuit: on - none - on
  • number of positions: 2
  • package: bulk
  • item per pack: 1
  • Length: 0.5 IN, Width: 0.26 IN, Height: 1.2 IN

Item in stock
can ship right now

Quantity:

(number in the box shows required min quantity)

C&K 7101MD9A2BE pricing

Qty
4
25
25+
Unit Price
2.50
1.99
Price
10.00
49.75

Did you see a better price somewhere else?
Request Price Match!

Description

C&k 7101MD9A2BE miniature toggle switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. Other rating: 0.4VA 20V MAX. SPDT ON - NONE - ON switch function. 2 positions. Through hole mounting.

0.200in high actuator "M". 0.280in high, keyway bushing "D9". Right angle, PC thru-hole terminals "A2". Gold contacts "B". Epoxy seal option "E". Typical applications in telecommunications, instrumentation and medical equipment.

spec sheet icon C&K 7101MD9A2BE data sheet

PQ: 4 | PWIP: 0.01 | REF: 120
