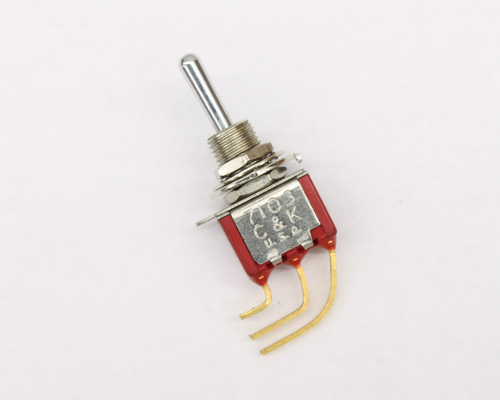

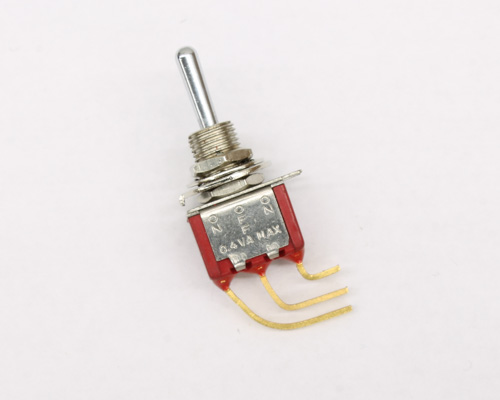

7103SYAV2BE C&K switch toggle miniature
click picture to enlarge
Part Number:
7103SYAV2BE
Manufacturer:C&K
Item ID: 2027003627C&K 7103SYAV2BE spec
- power rating: 0.4va 20v max
- mounting type: through hole
- switch function: spdt
- switch circuit: on - off - on
- number of positions: 3
- package: bulk
- item per pack: 1
- Length: 0.5 IN, Width: 0.26 IN, Length: 1.48 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 7103SYAV2BE miniature toggle switch. Other rating: 0.4VA 20V MAX. SPDT ON - OFF - ON switch function. 3 positions. Through hole mounting.
0.420in high actuator "S". 0.350in high, keyway bushing "Y". Vertical right angle, PC thru-hole terminals "AV2". Gold contacts "B". Epoxy seal option "E". Typical applications in telecommunications, instrumentation and medical equipment.
C&K 7103SYAV2BE data sheetQuestions and Answers
