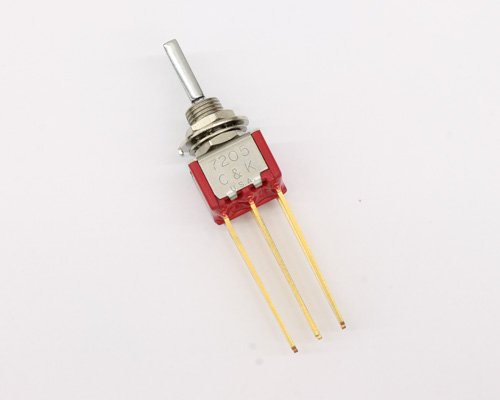

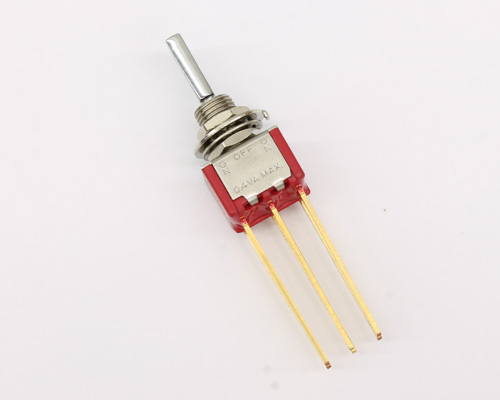

7205P3YW1BE C&K switch toggle miniature
click picture to enlarge
Part Number:
7205P3YW1BE
Manufacturer:C&K
Item ID: 2027003650C&K 7205P3YW1BE spec
- power rating: 0.4va 20v max
- mounting type: through hole
- switch function: dpdt
- switch circuit: (on) - off - (on)
- number of positions: 3
- package: bulk
- item per pack: 1
- Diameter: 0.5 IN, Width: 0.45 IN, Height: 2.1 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 7205P3YW1BE miniature toggle switch. Other rating: 0.4VA 20V MAX. DPDT (ON) - OFF - (ON) switch function. 3 positions. Through hole mounting.
Flatted, anti-rotation, 0.450in high actuator "P3". 0.350in high, keyway bushing "Y". 0.964in long, wire wrap terminals "W1". Gold contacts "B". Epoxy seal option "E". Momentary switch. Typical applications in telecommunications, instrumentation and medical equipment.
