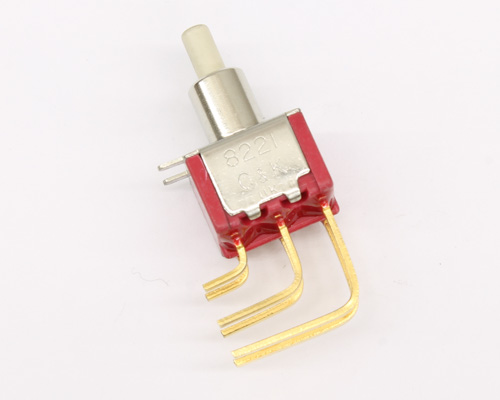

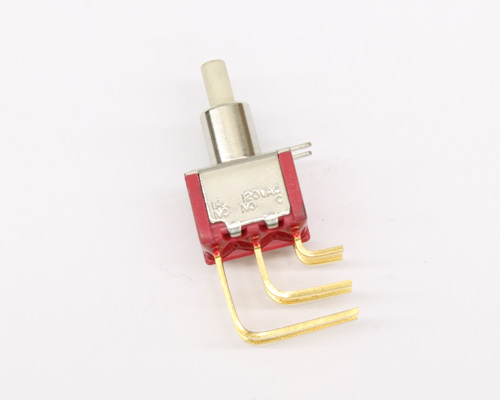

8221SD9AV2GE C&K switch pushbutton miniature
click picture to enlarge
Part Number:
8221SD9AV2GE
Manufacturer:C&K
Item ID: 2027003663C&K 8221SD9AV2GE spec
- current rating 1: 1.00 a
- voltage rating 1: 120 vac
- current rating 2: 1.00 a
- voltage rating 2: 28 vdc
- power rating: 0.4va 20v max
- mounting type: through hole
- switch function: dpdt
- switch circuit: on - none - (on)
- number of positions: 2
- package: bulk
- item per pack: 1
- Diameter: 0.5 IN, Width: 0.45 IN, Height: 1.32 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 8221SD9AV2GE miniature pushbutton switch. Amp rating 1 A at 120 VAC. 1 A at 28 VDC. Other rating: 0.4VA 20V MAX. DPDT ON - NONE - (ON) switch function. 2 positions. Through hole mounting.
Plunger actuator "S". 0.280in high, keyway bushing "D9". Vertical right angle, PC thru-hole terminals "AV2". Gold over silver contacts "G". Epoxy seal option "E". Momentary switch. Typical applications in computer peripherals, instrumentation and telecommunications equipment.
C&K 8221SD9AV2GE data sheetQuestions and Answers
