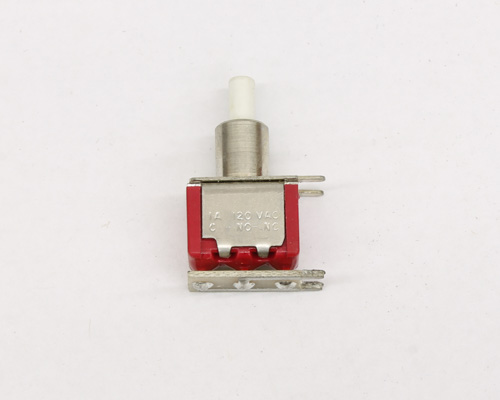

8121SD9VGE C&K switch pushbutton miniature
Hurry Up! Limited quantity left in stock!
click picture to enlarge
Part Number:
8121SD9VGE
Manufacturer:C&K
Item ID: 2027003697C&K 8121SD9VGE spec
- current rating 1: 1.00 a
- voltage rating 1: 120 vac
- current rating 2: 1.00 a
- voltage rating 2: 28 vdc
- power rating: 0.4va 20v max
- mounting type: through hole
- switch function: spdt
- switch circuit: on - none - (on)
- number of positions: 2
- package: bulk
- item per pack: 1
- Diameter: 0.62 IN, Width: 0.51 IN, Height: 0.97 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&K 8121SD9VGE miniature pushbutton switch. Amp rating 1 A at 120 VAC. 1 A at 28 VDC. Other rating: 0.4VA 20V MAX. SPDT ON - NONE - (ON) switch function. 2 positions. Through hole terminals.
Plunger actuator "S". 0.280in high, keyway bushing "D9". 0.460in high, Gold over silver contacts "G". Epoxy seal option "E". Momentary switch. Typical applications in computer peripherals, instrumentation and telecommunications equipment.
C&K 8121SD9VGE data sheetQuestions and Answers
