U11P3YCGE C&K switch toggle miniature

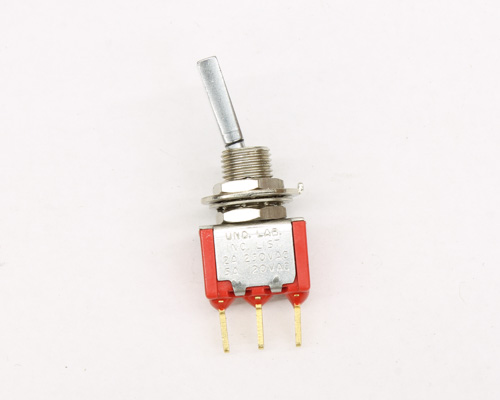

Picture of U11P3YCGE C&K switch toggle  miniature

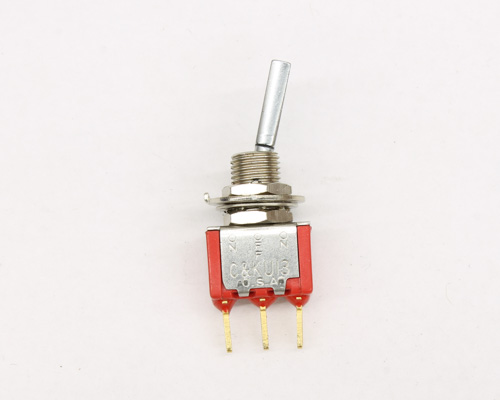

U11P3YCGE by C&K picture #1 U11P3YCGE by C&K picture #2
click picture to enlarge
Part Number:

U11P3YCGE

Manufacturer:

C&K

Item ID: 2027003700

C&K U11P3YCGE spec

  • current rating 1: 5.00 a
  • voltage rating 1: 120 vac
  • current rating 2: 2.00 a
  • voltage rating 2: 250 vac
  • power rating: 0.4va 20v max
  • mounting type: through hole
  • switch function: spdt
  • switch circuit: on - none - on
  • number of positions: 2
  • package: bulk
  • item per pack: 1
  • Diameter: 2.08 IN, Width: 0.91 IN, Height: 0.5 IN

Item in stock
can ship right now

Quantity:

(number in the box shows required min quantity)

C&K U11P3YCGE pricing

Qty
2
25
25+
Unit Price
5.00
3.99
Price
10.00
99.75

Did you see a better price somewhere else?
Request Price Match!

Description

C&k U11P3YCGE miniature toggle switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. Other rating: 0.4VA 20V MAX. SPDT ON - NONE - ON switch function. 2 positions. Through hole terminals. UL / CSA listed.

Flatted, anti-rotation, 0.450in high actuator "P3". 0.350in high, keyway bushing "Y". PC thru-hole terminals "C". Gold over silver contacts "G". Epoxy seal option "E". Typical applications in telecommunications, instrumentation and medical equipment.

spec sheet icon C&K U11P3YCGE data sheet

C&K U11P3YCGE Equal Part Numbers

7101P3YCGE (not UL / CSA listed version)
