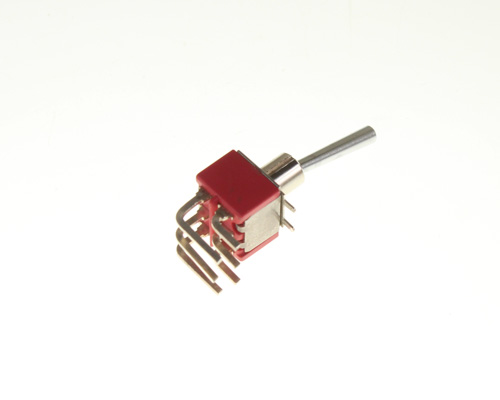

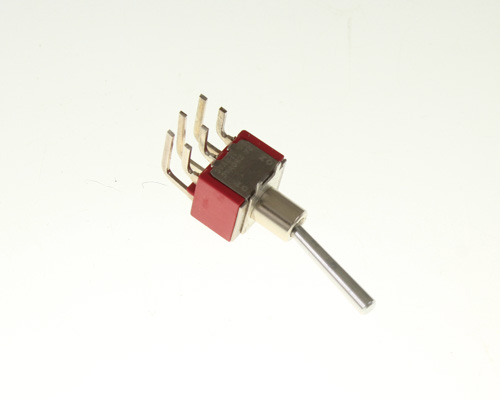

7201L1D9AQE C&K switch toggle miniature
click picture to enlarge
Part Number:
7201L1D9AQE
Manufacturer:C&K
Item ID: 2027003807C&K 7201L1D9AQE spec
- current rating 1: 5.00 a
- voltage rating 1: 120 vac
- current rating 2: 2.00 a
- voltage rating 2: 250 vac
- power rating: -
- mounting type: through hole
- switch function: dpdt
- switch circuit: on - none - on
- number of positions: 2
- package: bulk
- item per pack: 1
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
C&k 7201L1D9AQE miniature toggle Switch switch. Amp rating 5 A at 120 VAC. 2 A at 250 VAC. DPDT ON - NONE - ON switch function. 2 positions. Through hole terminals.
0.640in high actuator "L1". 0.280in high, keyway bushing "D9". Right angle, PC thru-hole terminals "A". Silver contacts "Q". Epoxy seal option "E". Typical applications in telecommunications, instrumentation and medical equipment.
C&K 7201L1D9AQE data sheetQuestions and Answers
