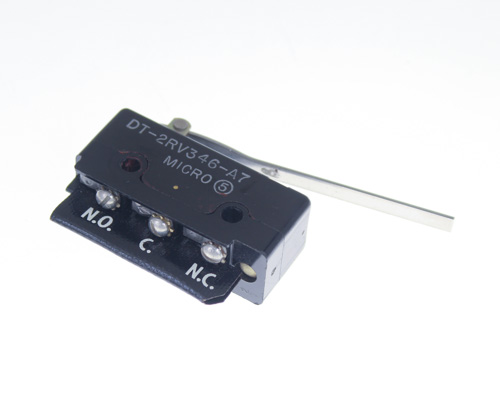

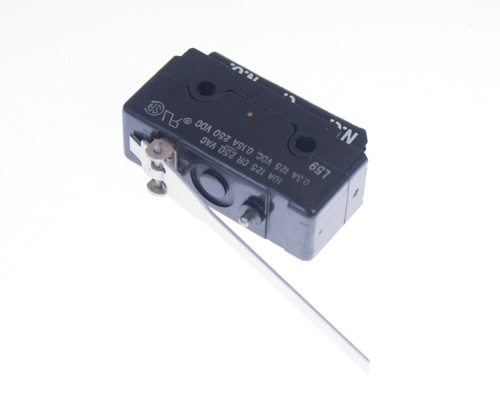

DT-2RV346-A7 MICROSWITCH switch snap action full size
click picture to enlarge
Part Number:
DT-2RV346-A7
Manufacturer:MICROSWITCH
Item ID: 2027003977MICROSWITCH DT-2RV346-A7 spec
- current rating 1: 10.00 a
- voltage rating 1: 125 vac
- current rating 2: 0.30 a
- voltage rating 2: 125 vdc
- power rating: 0.15a 250 vdc
- mounting type: screw
- switch function: dpdt
- switch circuit: momentary
- number of positions: 2
- package: bulk
- item per pack: 1
- Width: 0.68 IN, Height: 0.89 IN, Length: 1.94 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
Microswitch DT Series Snap Action Switch. Pin Plunger Actuator. 2.88" Leaf Lever. Amp rating 10 A at 125 VAC. 0.3 A at 125 VDC. Other rating: 0.15A 250 VDC. DPDT MOMENTARY switch function. 2 positions. Screw terminals.
