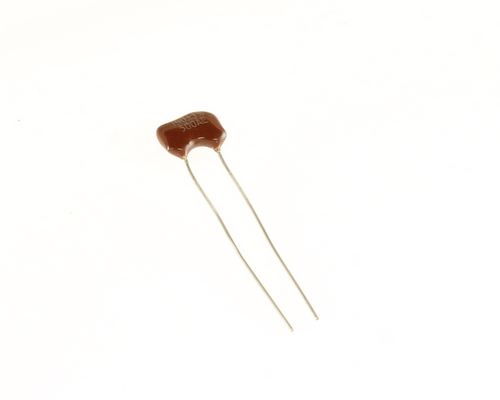

DM15FD191H03 ARCO capacitor 190pF 500V silver mica dipped
click picture to enlarge
Part Number:
DM15FD191H03
Manufacturer:ARCO
Item ID: 2020069429ARCO DM15FD191H03 spec
- capacitance: 190 pf
- voltage: 500 vdc
- non polar: yes
- tolerance: 3%
- temperature: -55c to +125c
- lead length: 37.08 mm (1.460 in)
- lead spacing: 5.84 mm (0.230 in)
- lead type: radial
- lead style: -
- color: brown
- package: bulk
- item per pack: 1
- Width: 4 MM, Height: 7 MM, Length: 10 MM
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
Arco DM15FD191H03 Silver Mica Dipped Capacitor.
DM15 Series. 0 to +70 ppm/C characteristic code "F". 500 Vdc Voltage rating "D". Capacitance 190 pF. 3% tolerance "H". -55C to +125C temperature range "0". MIL-STD-202 Method 204 Condition D at 10 Hz to 2 kHz vibration grade "3". Stable capacitance over a wide temperature range. Low dielectric absorption and repeatability. Excellent for timing, tuning, filtering, coupling, by-pass and close tolerance applications.
ARCO DM15FD191H03 data sheetARCO DM15FD191H03 Equal Part Numbers
CD15FD191H03, CD15FD191H03
