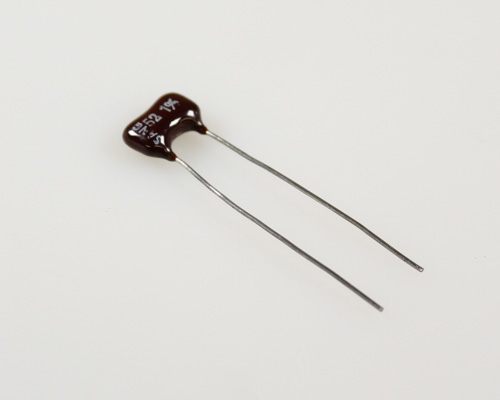

DM15FD520F03 SANGAMO capacitor 52pF 500V silver mica dipped
click picture to enlarge
Part Number:
DM15FD520F03
Manufacturer:SANGAMO
Item ID: 2020123758SANGAMO DM15FD520F03 spec
- capacitance: 52 pf
- voltage: 500 vdc
- non polar: yes
- tolerance: 1%
- temperature: -55c to +125c
- lead length: 36.07 mm (1.420 in)
- lead spacing: 5.08 mm (0.200 in)
- lead type: radial
- lead style: straight
- color: brown
- package: bulk
- item per pack: 1
- Width: 0.13 IN, Height: 0.25 IN, Length: 0.43 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
Sangamo DM15FD520F03 Dipped Silver Mica capacitor.
DM15 Series. 0 to +70 ppm/C characteristic code "F". 500 Vdc Voltage rating "D". Capacitance 52 pF. 1% tolerance "F". -55C to +125C temperature range "0". MIL-STD-202 Method 204 Condition D at 10 Hz to 2 kHz vibration grade "3". Stable capacitance over a wide temperature range. Low dielectric absorption and repeatability. Excellent for timing, tuning, filtering, coupling, by-pass and close tolerance applications.
SANGAMO DM15FD520F03 data sheetSANGAMO DM15FD520F03 Equal Part Numbers
CD15FD520F03
