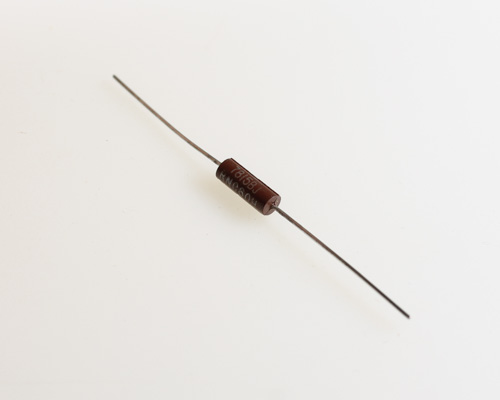

RNC60H2372FS IRC resistor 23.7 kOhm 0.25W 1% film metal film
click picture to enlarge
RNC60H2372FS
Manufacturer:IRC
Item ID: 2021051504IRC RNC60H2372FS spec
- resistance: 23.7 kohm
- resistance tolerance: 1%
- power rating: 0.250 w
- voltage rating: 250 v
- terminal type: axial
- package: bulk
- item per pack: 1
- Diameter: 0.14 IN, Length: 0.40 IN
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
Irc RNC60H2372FS RNC type resistor, RNC60 series. Temperature 50 ppm/C. Resistance 23.7 Kohms. Tolerance 1% "F". Failure rate 0.001% / 1000h "S". Power rating 0.25 watt. Solderable / weldable axial terminals.
Meets requirements of MIL-PRF-55182. Feature low noise, verified failure rate. Excellent matching and tracking, initial accuracy and long-term stabilities. Low temperature coefficients. Outstanding immunity to environmental stress. Used in D/A and A/D converter ladder networks, synchro / resolver circuitry, precision ranging / multiplying resistors and current shunts, AF / IF / RF circuits and R-C timming / delay networks.
