TGA1073C-SCC TRIQUINT RF Amplifier

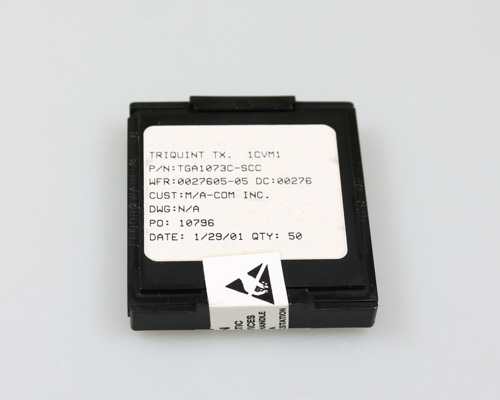

click picture to enlarge
TGA1073C-SCC
Manufacturer:TRIQUINT
Item ID: 2028031914TRIQUINT TGA1073C-SCC spec
- device function: rf amplifier
- device package type: -
- package: tray
- item per pack: 1
- Length: 2.4 MM, Width: 1.45 MM
Item in stock
can ship right now
(number in the box shows required min quantity)
Description
TriQuint TGA1073C-SCC two stage PA MMIC 36-40 GHz Power Amplifier. Features TriQuint's proven 0.25 pm Power pHEMT process to support a variety of millimeter wave applications including point-to-point digital radio and point-to-multipoint systems.
EXPORT RESTRICTED ITEM. The TGA1073C provides 24 dBm of output power at 1dB gain compression and 26 dBm saturated output power across the 36-40 GHz with a typical small signal gain of 15 dB. 0.25um pHEMT Technology 36-40 GHz Frequency Range 26 dBm Nominal Pout @P1dB,38GHz 15 dB Nominal Gain Bias 5-7V @ 240 mA Chip Dimensions 2.4 mm x 1.45 mm
